Features

Specifications

Application: Bar, Wire

Plastic Processed: PP

Condition: New

Screw Design: Single-screw

Screw Material: 38CrMoAlA Nitriding Treatment

Screw Diameter (mm): 65 Mm

Screw L/D Ratio: 38:1

Screw Speed (rpm): 1050 Rpm

Showroom Location: None

Voltage: 380v 50hz 3ph

Dimension(L*W*H): 10M*3M*2M

Power (kW): 30

Weight: 1500

Warranty: 1 Year

Key Selling Points: High-accuracy

Applicable Industries: Manufacturing Plant

Marketing Type: New Product 2020

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty Of Core Components: 1 Year

Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel, Pump, Screw

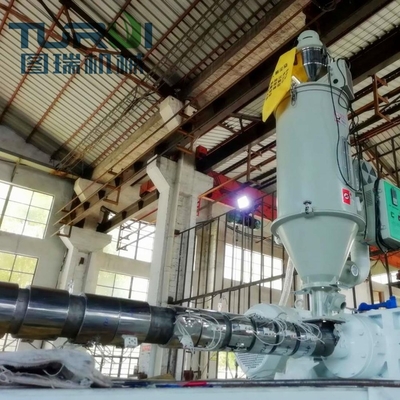

Name: Melt Blown Fabric Extruder SJ65 Single Screw Extrusion Machine

Raw Material: PE Granules

Product Type: Melt Blown

Capacity: 15-30kg/h

Extruder: SJ65

Keywords: SJ65 Single Screw Extrusion Machine

After Warranty Service: Online Support

Basic Infomation

Payment & Shipping Terms

Product Description

hot sale melt blown fabric extruder SJ65 single screw extrusion machine fast delivery

PP melt blown nonwovens production line is the high polymer melt extruded by screw extruder.
Through high-speed hot air or other means, the high polymer is extremely stretched to form a very fine short fiber, which
condenses to a roller or a web curtain to form a fiber net, and finally is formed by self bonding or thermal bonding.
Its unique performance is widely used in mask filter materials, thermal insulation filling materials, medical health materials,
wiping materials, etc., and the finished product as the core material of mask can pass N95 standard.

Parts of Meltblown Production Line / Mask PP melt blown filter fabric machine / PP melt blown filter fabric machine
Screw Extruder----> Filter----> Metering Pump----> Heating System----> Meltblown---> Net Forming Machiene----> Windering Machine

PP melt blown non woven fabric extruder / Filter PP melt blown fabric machine / Filter of PP melt blown fabric making machine

Meltblown technology is one of the most effective ways to make very fine, highly efficient filter media. A melt-blown fiber has a diameter of less than 10µm, many times finer than a human hair, which has a diameter of 120µm, or a cellulose fiber of about 50µm.

The raw material is a thermoplastic synthetic material that is melted and forced through an extruder consisting of a very large number of tiny nozzles. Immediately after exiting the nozzles, the individual filaments are blown by hot air in the same direction while still in their semi-melted state, extending them and creating very fine, endless fibers, within a few milliseconds.
Using this dry-laid process, the machine can produce media with weights from 25 – 75g/m².
Alternatively, the melt-blown can be directly applied to a carrier media cellulose or spun-bond, producing combination media inone step.Additional there are many options to choose: fiber diameter, thickness, grammage, haptic surface design, resistance to chemicals,heat resistance, compostability, dust loading, low shedding surface polarity, UV-Protection, antibacterial, colors, electric charging and antistatics.

Company Profie

Turui Machinery specially work for independent research and development of plastic extrusion technology.PVC profiles,like pvc panels,pvc sidings,pvc ceilings,pvc corners,pvc doors, WPC products,like PE WOOD decking,pvc wood sidings.PVC ,PE,Pipes,Corrugated pipes,plastic stone corners.Turui Machinery is also professional in plastic recycling machines,plastic pelletizing lines,pp pe pet washing recycling lines,plastic shredder,plastic crushers,agglomerators and etc.
Turui pelletizer engineers will design machine according to your raw materials, give advice which plastic pelletizer is good for you. According to different raw materials characters,there are different types pelletizer for choice,such as water cooling strand pelletizer,air cooling strand pelleizer,water ring pelletizer, rub face hot cut pelletizer.
Turui is an innovation high tech company,always keep focus on plastic recycle technology research,like pe pp recycling machine, ABS recycling plant,PET washing recycling line, plastic pelletizer for PE PP films,BOPP films,HDPE flakes,ABS,PA,PVC, XLPE,EPS etc.

Our workshop

Exhibitions

Certificate

Packing

The normal package is wrapping shrink film first,after that wooden box(Size: L*W*H). We also can pack it according to customers special request.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 10 year's experience,welcome to visit !

Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your samples for a test.

Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 12months guarantee and supply life-long technical support.

Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.

Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
