Home /Products/Copper Extrusion Machine/Favorable Price Compound Plastic Wood Extruder Pelletizing Machine

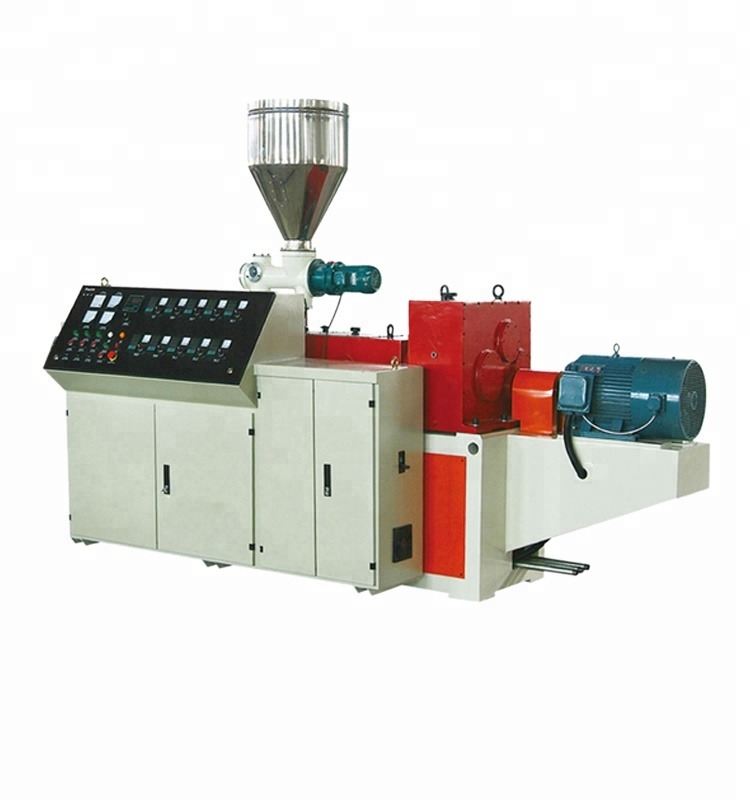

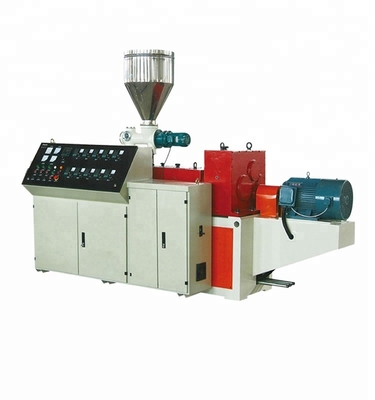

Favorable Price Compound Plastic Wood Extruder Pelletizing Machine

1 Set
MOQ
$7,700.00(1 - 4 Sets) $7,500.00(>=5 Sets)
Price
Favorable Price Compound Plastic Wood Extruder Pelletizing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Pelletizing, PIPE, Sheet
Plastic Processed: FRPP/PVC, HDPE, PE/PP, PPR, PVC
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 65 Mm
Screw Speed (rpm): 35 Rpm
Showroom Location: Indonesia, Viet Nam
Voltage: Customized
Dimension(L*W*H): 20mx2.5mx2.2m
Power (kW): 100
Weight: 8-20T
Warranty: 1 Year, 1 Year
Key Selling Points: Automatic
Applicable Industries: Building Material Shops, Construction Works
Marketing Type: New Product 2019
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Gearbox, Motor, Screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support
Raw Material: Plastic Powder,plastic Granules
Usage: Extruding Pp Pe Pvc Profile Board Sheet
Inverter: ABB Frequency Controller
Product: Windows Profile,plafond,wall Panel,floor Board Etc
Other Name: Pvc Profile Extrusion Machine
Type: Profile Machine
Automatic Grade: Automatic
Power(W): 11-110KW
After Warranty Service: Field Maintenance And Repair Service, Online Support, Spare Parts, Video Technical Support
Local Service Location: Indonesia, Viet Nam
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: In film packaging, spare parts will be packed in cartons or wooden cases.
Supply Ability: 100 Set/Sets per Year plastic plastic wood extruder machine
Product Description
Product Description
Introduction
Plastic board extrusion line is used to produce plastic board with width from 600 to 1250mm, which are effective、safe
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.
Type
PVC Door Panel Extrusion Line
Model
YF600
YF80
YF1000
YF1250
Max width of product(mm)
600
800
1000
1250
Extruder model
SJZ80/156
SJZ80/156
SJZ92/188
SJZ92/188
Extruder power (kw)
55
55
132
132
Max extrusion capacity(kg/h)
280
280
600
600
Cooling water consumption(m³/h)
10
12
15
18
Compressed air consumption(m³/min)
0.6
0.8
1
1.2

Extruder

Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

Mould

Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.

Vacuum Platform

Length: 4-6Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting

Haul-off

Haul-off Bracket Length: 1200mm, Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas
cylinder, Cut Motor Power: 0.75KW*1PC.

Cutter

Cutting action controller : PLC
The impact method:pneumatic impact
Cutter structure:Saw type

Stacker

Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.

Pre-sale

We provid presales service in various forms,for example,making investment budget,manufacturing planning,etc.So that customers make a reasonable plan with less cost.
Investment budgeting--We provide services of product profit analysis,recommendation of machine and auxiliary equipment and relevant budgeting,human resources allocation and budgeting.
Plant planning--We provide the mounting dimension of the equipment base,design of equipment layout,workshop ventilation,water transmission etc.
Packing & Delivery
Plastic Board Making Machine Production machine will be packed by film, spare parts will be packed by paper box or wooden cases. Whole extrusion machine need about 1 contain of 40inches.
Warranty
1.Machine warranty
12 months Warranty for Mechanical part, 6 months warranty for electrical parts, and equipment repair services for life
2.Service warranty
The seller shall send the technicians to buyer’s factory cover installation, commissioning, guide and train the buyer’s workers for 7 days
