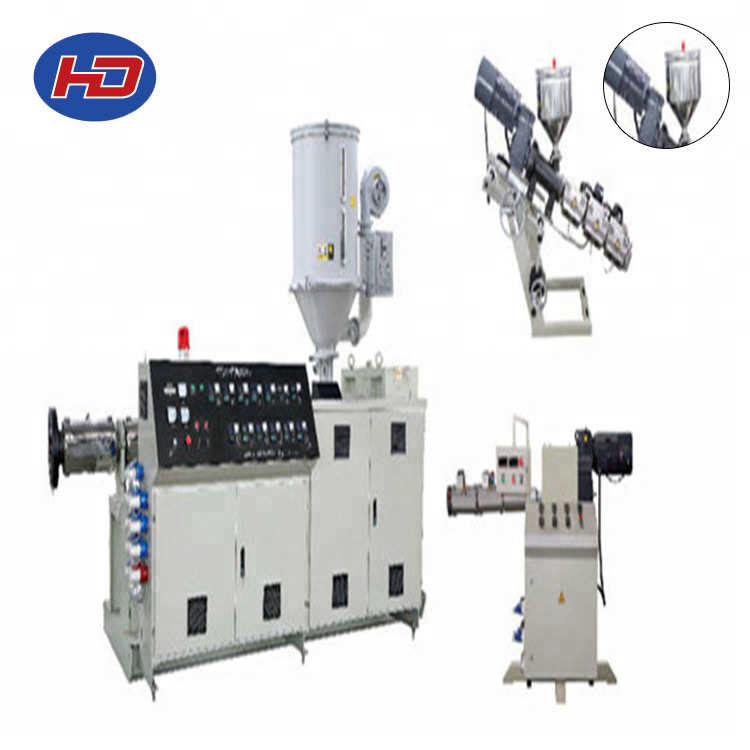

3D printing wire production line:
With the increasing popularity of 3D printing technology, people's demand for 3D printing consumables is also growing, the demand for 3D printing consumables is also increasing. Our company has been committed to the production of 3D printing consumables since 2013, has accumulated a lot of experience and technical resources, and has successfully developed the fourth generation of products. We have co operated with many universities at home and abroad. Our customers cover most European and American countries.
1. heater: cast aluminum heater (if PEEK and other high temperature materials need to be replaced by ceramic heating).
2. reducer: Jiangyin hardened gear reducer.
3. electrical appliances: Schneider.
4. speed regulation: ABB AC variable frequency speed regulation.
5. temperature control chart: OMRON.
6. screw material: 38CrMoAlA nitriding.
Technical parameters:
| Model | FLD-35 | FLD-45 |
| Capacity | 8-156kg/hour | 18-25kg/hour |
| Motor Power | 7.5kw | 15kw |
| Equipment length | 5.8Meter | 11-13Meter |
| Filament output | 1 line | 1line |
| Line diameter | 1.75mm,2.85mm,3mm(can customize) | |
| Line tolerance | 0.03mm | 0.03mm |
| Heating temperature | Normal atmospheric temperature~480℃ | |
| Operation man | 1 | 1 |
Advantages: 24-hour accuracy error control within + - 0.03 mm; automatic cutting and winding; winding neat; efficient after-sales service
| NO. | Equipment | Quantity |
| 1 | Drying hopper + vacuum suction | 1 set |
| 2 | SJ 45 Single Screw Extruder | 1 set |
| 3 | High precision mould | 2 sets |
| 4 | long heat water tank | 4m |
| 5 | long cool water tank | 4m |
| 6 | single directionlaser diameter measuring instrument | 1 set |
| 7 | Roller traction machine | 1 set |
| 8 | Horizontal storage rack | 8m |
| 9 | High precision double coiler | 1set |
