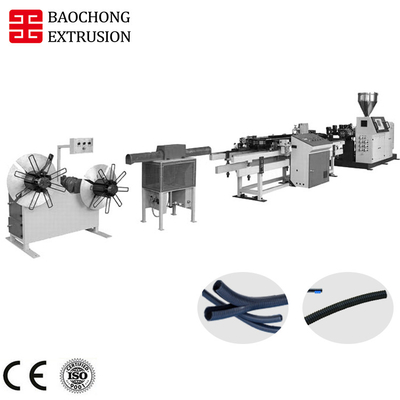

High speed single wall corrugated pe pipe tube extrusion line with CE ISO9001
Description
-Different extruder and forming machine will be chosen for different material: PA, PE, PP, UPVC, etc. The pipe is mainly use for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry, lamp industry and air-exhausted pipe etc.
- Standard single wall high speed corrugated pipe forming machine: can produce two diameters or three diameters’ single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and reduce the time for changing the mould blocks, increase the efficiency.
- High speed corrugated pipe forming machine: forming blocks running without chain, blocks installed directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm, realize high speed stable running.
- Material: PA, temperature range: -40℃-115℃, the product does not contain halide, anti-oil, anti-acid. Anti-inflammation rate is HB (U94). The black color pipe is ultraviolet resistant.
Material: PP, temperature range: -20℃-110℃, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Material: PE, temperature range: -40℃-80℃, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Main technical parameter:
| Model | DBWG-45 | DBWG-50 | DBWG-65 | DBWG-90 |
| Screw diameter(mm) | 45 | 50 | 65 | 90 |
| L/D | 30 | 30 | 30 | 30 |
| Pipe diameter range(mm) | 4.5~13 | 16~32 | 25~48 | 90~160 |
| Mold block quantity(pairs) | 52~70 | 52~70 | 52~60 | 72 |
| Producing speed(m/min) | 16~20 | 12~16 | 6~10 | 2~4 |
| High speed type | Model | Screw diameter (mm) |
Pipe diameter range (mm) |
Producing speed (m/min) |
| DBWG-50T | 50 | 7~32 | 20~25 | |
| DBWG-45T | 45 | 5~25 | 20~25 |
1. Are you a factory or trading company?
We are manufactory established in 2002.
2. Where is your company and factory located?How can i visit you?
Our company is located in No.700 Fengrao RD,Jiading District,Shanghai,China.Post code:201801.All our clients,from home or abroad,are warmly celcome to visit us!
3. Which industries are mainly targeted at BAODIE’equipment?
Medial industry,Automobile industry,3D printing industry,Cosmetic Industry,Packaging industry,etc.
4. How does your company and factory do regarding quality control?
Quality in priority.Alice always attach great importance to quality controlling from beginning to the end.Our factory comply with the ISO9001 standard strictly.
5. How is your after-sales service of your equipment?
We have always upheld a belief in extraordinary service and professional trust in our dealings with customers.Any inquiries will be answered within 24 hours after receiving the contact,including inquiries about changes and maintenance.
