Features

Specifications

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Printing Shops, Construction WorksÂ

Showroom Location: Canada, United Kingdom, Italy, Russia

Condition: New

Machine Type: Hollow Line Auxiliary Equipment

Production Capacity: 100%

Voltage: 380V 50HZ/ 220V 60HZ

Power: 3.2kw, 380V 3ph 50HZ/220V,60HZ

Dimension(L*W*H): 3200*700*1050mm

Weight: 8000 Kg, 800 Kgs

Warranty: 1 Year

Key Selling Points: Easy To Operate

Glass Thickness: 1-40mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product 2021

Warranty Of Core Components: 1 Year

Core Components: Motor, PLC

Brand: TENV

Certificate: CE

HS Code: 8464201000

Dimension: 3200(L)*700(W)*1050(H)mm

Heating Power: 3.2 Kw

Butyl Volume: 14L

Air Pressure: 0.4-0.7mpa

Squeeze Pressure: 12-18 Mpa

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Turkey, United States, Italy, France, Russia

Certification: CE

After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support

Basic Infomation

Certification: CE, CE

Payment & Shipping Terms

Packaging Details: PE film Package

Supply Ability: 10 Piece/Pieces per Month

Product Description

Introduce:

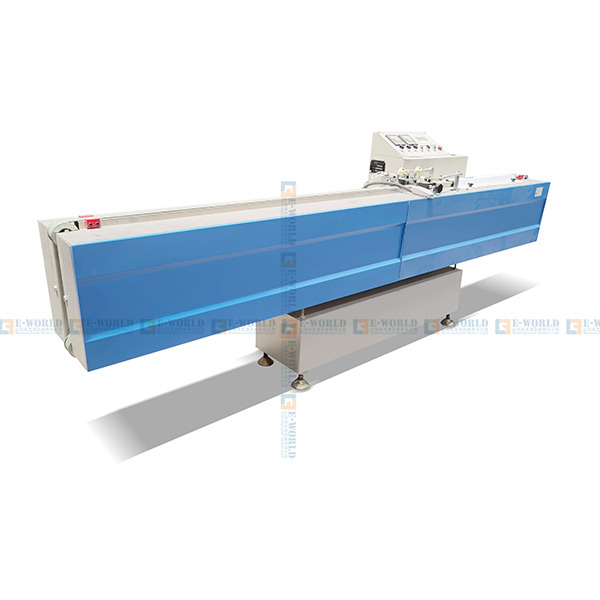

1).The machine is the specialized equipment to apply the hot melt butyl sealant to both sides of the aluminum spacing frame uniformly. 2).The operator just hold the aluminum spacing frame and all the other operations (rolling. transfer. etc.)can be completed automatically as programmed with convenient operation, stable and reliable operation, good effects of sealant extrusion and high production efficiency, it is necessarily double-glazing insulating glass manufacturing.

Brand	TENV
Weight	8000kg
Dimension	32007001050mm
Space Width	6mm,9mm,12mm,16mm,19mm
Speed	10-30m/min
Butyl Volume	14L
Heating Power	3.2Kw
Squeeze pressure	12-18 Mpa
Certificate	CE
Air Pressure	0.4-0.7mpa

Feature

1.Butyl extruder can process frames from 6-20mm width. 2.The feeding nozzle can be positioned to deliver uniform sealing. 3.Pneumatic operation of butyl process is controlled by a PLC that electrically regulates the temperature of the

butyl heaters. 4.A timer enables the pre-heating of butyl ahead of the start of operation. 5.The height adjustment is available according to the frame size. 6.The nozzle width shall be controlled by pneumatic and hydraulic parallel method. 7.Conveyor speed can be adjusted with 5 conveyor speed. 8.Possible to control the length of butyl application and monitoring current production quantity on the touch screen.

*20years factory production experience*3 years machine warranty

*156 exported country experience

*20000 square meters Glass machine&upvc windows machine factory

*Shandong TENV intelligent Technology Co.,Ltd

Shandong TENV intelligent Technology Co.,Ltd is one of the famous and big manufacturers of glass equipment, windows equipment, CNC
equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass
machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products,
exquisite techniques, solid working, and cordial services

About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.

We went to many exhibitions in China to expand our reputation.

Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !

FAQ

Question:Are you manufacture? Answer:Yes,we are the professional manufacture which have more than 5 workshops. Question: How about the service ? Answer: 1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour 2).deliver max. days within 15 days 3).24 hours for after -sale serive 4).more than 12 years experience in this kind machine field 5).fluent english ,communication barrier free Question:What’s the guarantee ? Answer: 1).Our guarantee for 18 months. 2).24 hour’s technical support by email or calling 3).English manual and video tutorial 4).2 year quality guaranty for the machine (excluding the consumables) 5).We will provide the consumable parts at an agency price 6).24 hours on line service each day, free technical support. Q: Do you provide equipment operation training? Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport. Question:if our price is higher than another company or factories ? Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside. Question:How long is the delivery time ? Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days. Question: What is the payment ? Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
