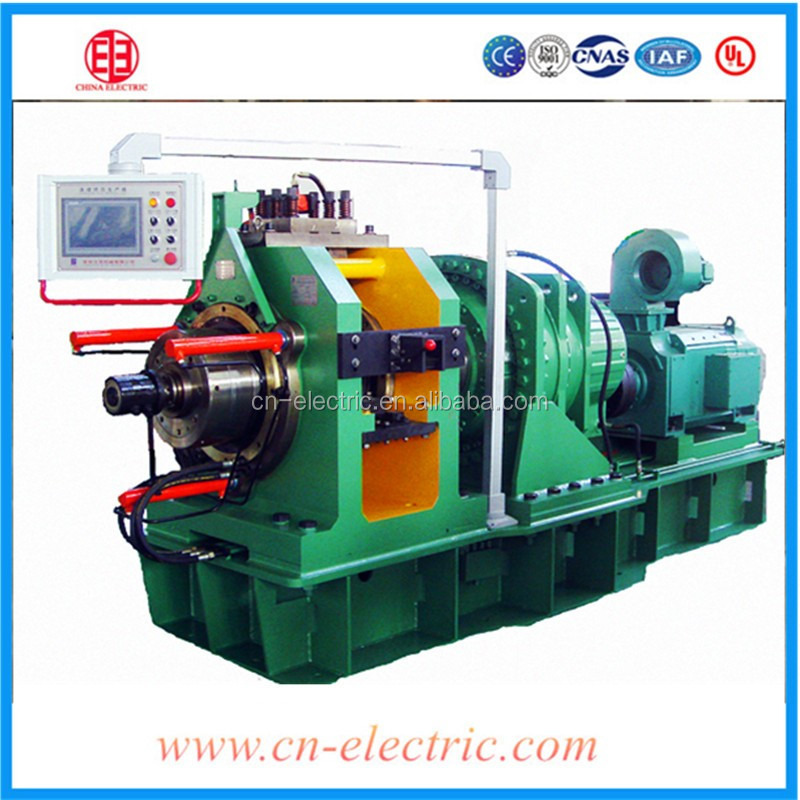

Conitnuous aluminum profile extrusion machine
Parameter
| Type | FXAJ300 |
| Nominal diameter of extrusion wheel (mm) | 300 ( different according to model) |
| Power of main motor (kw) | DC 110, DC 132 ( different according to model) |
| Rotating speed of extruder (rpm) | 4 ~ 12.5.5 ( diferent according to model) |
| Type of material | Pure aluminum. aluminum alloy |
| Diameter of wire rod (mm) | 9.5, 12 |
| Max. width of the product (mm) | Flat wire, flat tube: 32mm wide Pipe: 5 - 20mm diameter 0.4-2mm thick for flat pipe 0.3-1.5mm thick for flat tube |
| Average productivity (kg/h) | 180 (different according to model) |
| Flash rate ( % ) | 0 |
Simple introduction:
The production line is composed of pay-off stand for aluminum wire rods, straightener, online washing machine( as customer’s requirement), continuous extruder, cooling system, balance arm, taken-up machine and electrical control unit. The raw material can be the pure aluminum rod, and also be the aluminum alloy. If the surface of aluminum rods is clean, the cleaning system is not necessarily needed. Firstly, the pay-off stand sends the wire or rod to straightener; then the wire or rod is sent to continuous extrusion host machine; after extrusion, the wire or rod becomes strips or other required products. They go through Anti-oxidation cooling system and are rolled by spooling machine, or cut by other equipment.
The production line are used to produce aluminum flat wires, flat tubes, pipes for electric locomotive or other solid aluminum material. The finished products are widely used for manufacturing transformer, big and middle size motor, high or low electric switch, DC electric commutator and so on.
aluminum extruding technology has many outstanding features compared with the traditional drawing technology:
1. Raw material can be pure aluminum or aluminum alloy
2. The production process doesn’t need annealing process, which helps to save more energy.
3. Simple production process. One model can form the shape; It is convenient to change the mold.
4. With accurate dimensions and fine finish, our products possess very good mechanical and electric conduction ability.
5. The convenient production process is especially suitable for producing varieties of products in small quantity.
6. The equipment saves space for compact structure. What’s more, it costs not much to set and operate the equipment.
7. The equipment is characterized with less operators, energy-saving advantages, environment protection and less methodology consumption.
Copper or aluminum extrusion machine
Presale service After-sale service
in-time reply for any question online Engineer available to service machinenary overseas
free technical support In-time feedback for product problem
factory-visit support 1-year warranty
Generally the machine is packed in plywood cases. They are shipped by sea or according to customers' requirements.
China Electric (Shanghai) Co., Limited is established since 1960s. We located in Shanghai - the most important international financial and business center of China. We have employees more than 1000. Our factory is about 30,000~50,000 square meters. We have passed ISO 9001:2000 Management Certification. All our products passed CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria.
We have always been committed to technological innovation for various requirements of our customers. As we are an integrated company with the technology, manufacturing, sales and service, we can offer clients professional traning before sales, and considerate after-sales services. It is our wish that to provide the best products and services so that we can creat more values to our customers.
