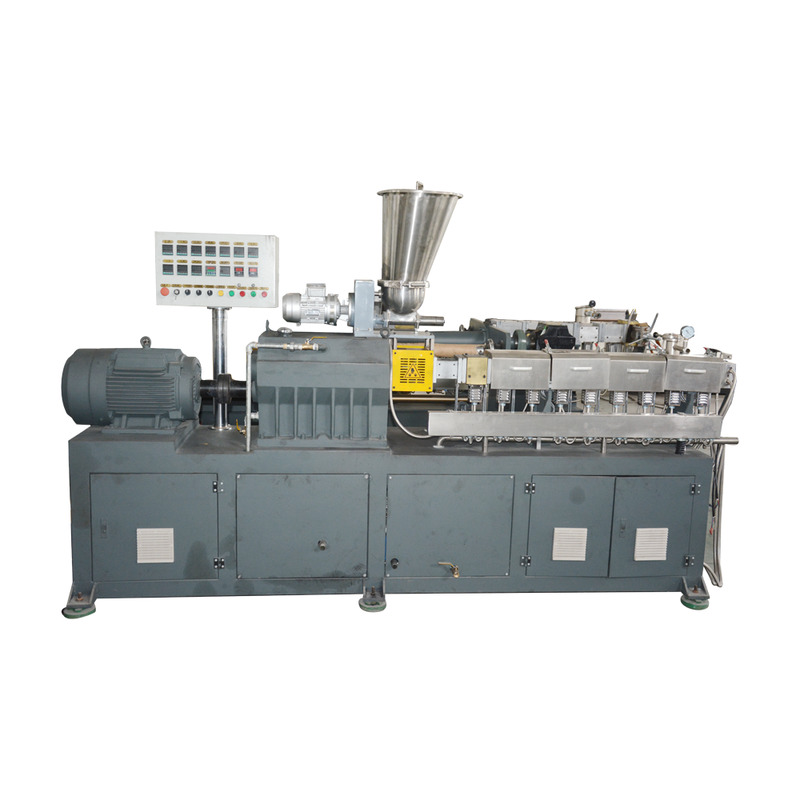

Co-rotating parallel twin-screw extruder is widely used in general plastic, engineering plastic and thermal plastic rubber, etc polymer materials such as filling, reinforcing, toughening, etc blending modification, as well as the special fiber and special adhesive, etc processing fields.
On the principle of modular design for the main engine, combined with the production process of special needs, the screw length to diameter ratio, barrel structure, changing sieve, pelletizing form, and automatic control, etc.are flexibly optional.
It advances by leaps and bounds in the manufacture precision and quality of conventional and high-torque transmission case of the hard-toothed surface. The overall reliability and quality stability research reach the domestic leading level.
Combined with powerful design experience, it has a processing manufacturing platform of a special new type of machine structure and screws element.
Technical parameters
Type | Dia.(mm) | L/D | Speed(rpm) | Motor(kw) | Output(kg/hr) |
JWP-20 | 22 | 28-64 | 600 | 4 | 0.15-15 |
JWP-35
| 35 | 28-64 | 500 | 15 | 30-60 |
600 | 18.5 | 40-80 | |||
JWP-50 | 50.5 | 28-64 | 500 | 45 | 130-230 |
600 | 55 | 160-280 | |||
JWP-65 | 62.4 | 28-64 | 400 | 55 | 160-280 |
500 | 75 | 220-380 | |||
600 | 90 | 220-380 | |||
JWP-75 | 71 | 28-64 | 400 | 90 | 220-380 |
500 | 110-132 | 330-550 | |||
600 | 160 | 390-660 | |||
JWP-95 | 93 | 28-64 | 400 | 250 | 750-1300 |
500 | 280 | 750-1300 | |||
600 | 315 | 940-1580 | |||
JWP-135 | 133 | 28-64 | 400 | 550 | 1600-2780 |
500 | 750 | 2200-3800 |
Q1. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q2. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
