Home /Products/Metal Extrusion Machine/Retail PL Biodegradation PE Film Extruder PVC Film Material Blowing Machine

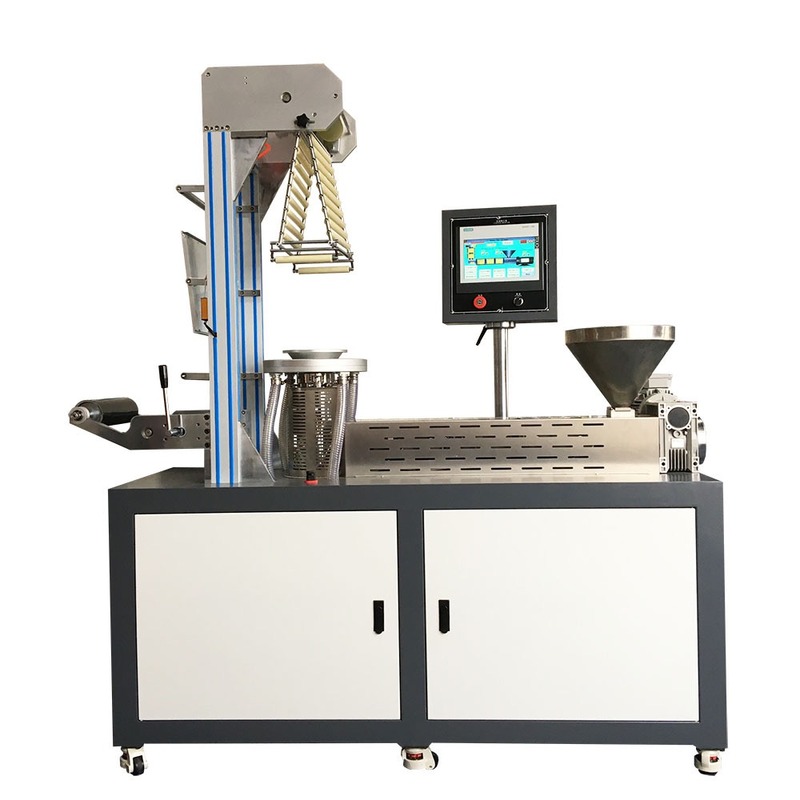

Retail PL Biodegradation PE Film Extruder PVC Film Material Blowing Machine

1.0 Sets
MOQ
$13,200.00(1 - 2 Sets) $12,500.00(3 - 4 Sets) $11,600.00(>=5 Sets)
Price
Retail PL Biodegradation PE Film Extruder PVC Film Material Blowing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PP, PC, PVC, EVA, PA, HDPE/PP, PE/PP
Condition: New
Output (kg/h): 5 - 10
Screw Diameter (mm): 25
Number Of Layers: Single-layer
Model Number: XH-430B
Year: 2020
Dimension(L*W*H): 1500X800X2000
Key Selling Points: Easy To Operate
Warranty: 1 Year
Applicable Industries: Retail, Food Shop, Printing Shops
Showroom Location: Canada, United States
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: Canada, United States
Film Thickness (mm): 0.01 - 0.02
Basic Infomation
Model Number: XH-430B
Payment & Shipping Terms
Packaging Details: Standard export packaging
Product Description
Product Description
Extrusion blown film refers to the bi-fold plastic film obtained by continuously extruding the plastic melt through the die under the action of a certain temperature and a certain shearing force, which is inflated by compressed air, cooled by an air ring and traction by frequency conversion. crafting process. This machine is mainly used to detect the feasibility of blown film of polymer materials and the colloidal condition in the material, as well as the dispersion of colored dispersions, control mixtures, and extrudates. Machine applicable materials: HDP, LDPE, LLDPE blown film grade PP + masterbatch, filler masterbatch, plastic additives, functional masterbatch
Technical Parameters
Model
ZS-430B
Type
Hollow blow molding machine
Applicable Raw Materials
PP, PA, EVA, ABS, PS, PC, PE, EVOH, PVC, PETG
Production Capacity
5 (kg/h)
Dimensions
1500X800X2000（mm）
Screw Diameter
25 (mm)
Product thickness
0.02 (mm)
Motor Power
2.2(KW)
Number of Mold Bases
2
Features:
1. The extruder is driven by an international brand variable frequency motor, which has stable plasticization and good consistency; 2. Extrusion device: The barrel and screw are the key parts of the machine, and the plasticization and extrusion of materials are carried out here. The barrel and screw are made of high-quality nitrided steel 38CrMoALA. The surface has undergone a week of gas nitriding treatment. It has good mechanical properties such as high hardness, wear resistance and corrosion resistance, which greatly extends its service life. 3. The barrel heating of this machine adopts cast aluminum heater and stainless steel air hood, which is beautiful and energy-saving, good heat resistance, long service life, uniform heat transfer, and easy to replace; the fan is cooled through the set channel (automatically open the fan for cooling when the temperature is over ), the cooling effect is good. 4. Transmission device: the drive motor is directly connected with the reducer, and the output shaft of the reducer is connected with the screw to drive the screw to rotate. The transmission device has compact structure, stable operation and strong bearing pressure. 5. Emergency shutdown device and various safety protections to ensure the safety of operators; 6. Highly intelligent and easy to operate.
Detailed Images
Why Choose Us
Main Products
Company Profile
Xiamen Ollital Technology Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. It provides professional first-class packaging solutions for food, pharmaceutical, daily chemical and electronic products.The company's main products are automatic capsule filling machine, blister packaging machine, cartoning machine, tablet press machine, counting machine and other related pharmaceutical equipment. The company has passed the SGS and ISO9001:2015 quality certification management system, some products have passed the CE certification of the EU, and obtained the right to import and export. The company has pre-sales consulting department, packaging solution consulting department, after-sales service training department, and strive to provide customers with star brand service!Now, through the efforts of all Hanyoung employees, our products have been sold to more than 30 provinces, cities and territories in the country, and sold in the United States, Canada, Russia, Britain, Germany, Spain, Malaysia, Indonesia, Thailand, India, Brazil, etc. More than 100 countries have won good reputation and credibility in the international and domestic markets. In the course of development, the company has always adhered to the "excellence" work attitude, scientific production management, intimate service to impress customers, on the road of development, to conquer more difficult obstacles, and grow together with customers.
Packing & Delivery
