Home /Products/Metal Extrusion Machine/Chemical Industries EVA Transparent Hot Melt Adhesive Glue Stick Making Maker Machine 60-200kg/h Production Extrusion Line

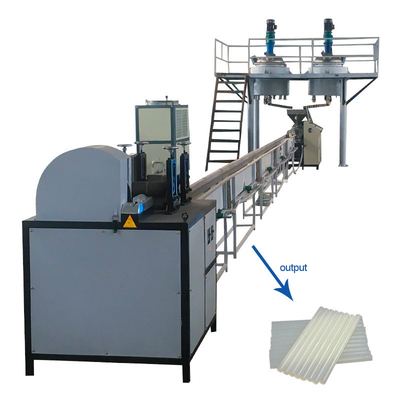

Chemical Industries EVA Transparent Hot Melt Adhesive Glue Stick Making Maker Machine 60-200kg/h Production Extrusion Line

1.0 Sets
MOQ
Chemical Industries EVA Transparent Hot Melt Adhesive Glue Stick Making Maker Machine 60-200kg/h Production Extrusion Line
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Product Type: Glue Stick Making Machine
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Motor
Warranty: 1 Year, One Year
Key Selling Points: Easy To Operate
Applicable Industries: Manufacturing Plant
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Type: Hotmelt Glue Stick,granules
Capacity: 300-400kg/h
Usage: Produce
Application: Chemical Industries
Name: Glue Stick Making Machine
Material: Stainless Steel
Function: Automatic Production Line
Voltage: 220V/380V
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: FCL Three Plywood LCL Wrapping Film Customized
Supply Ability: 999 Set/Sets per Month
Product Description
Product Description
Model
Motor power
Two vessel volume
Out put capacity
RJ-65
11KW
150L*2
60-80 KG/H
RJ-90
22KW
200L*2
100KG/H
SJ-120
30KW
500L*2
200-300 KG/H

1. This production line is suitable for various hot melt adhesive with good mixing effect.
2. With the reaction kettle, It can produce continuously.
3. Adopting water cooling, air cooling to cool.
4. Automatic cutting.
The extruder adopts Automatic temperature control and frequency conversion speed regulation


NOTE:
We are the professional manufacturer for adhesive machine making,
advanced technical& formula used for hot melt adhesive can be provided.

Process:
Raw material→feeding→mixing→extruding and shaping→cooling and setting→automatic traction→automatic cutting→final product

1)150L stainless steel electric heating reactor(Voltage:380V 50Hz)
Reducer:BLD3-23
Power:3kw
Capacity:150L
Stirring type:Frame mixing
Speed:62r/min
Heating rod:4kw/pcs*9pcs
Material of the inner barrel:5mm SUS 304 stainless steel
Sandwich material:4mm Q235B carbon steel sheet
Stirrer:57*5 SUS 304 stirrer
Seal:Teflon packing seal
Barrel internal size:800*800*1800mm(L*W*H)
Weight:600Kg
2)Hot melt glue stick extruder 1set
Power:18.5kw-4P
Frequency converter brand:Kerun or alpha
Screw and cylinder material:38CrMoAl nitrogen treatment with heating and colling function
Heating ring power:≤18kw with heat preservation function
Heating power:3-4kw
Mould material:brass 7mm/11mm or other can be customized
Number of extruded:1pcs
Machine architecture:Angle steel frame with shield
Reducer:ZLYJ-200 Hard tooth surface special reducer
Machine size:2800*1000*1600mm(L*W*H)
Weight:1300kg
3)Electric control system
Extruder/reactor Auxiliary ammeter, voltmeter, circuit breaker,
four-zone digital temperature control device for reactor,
digital temperature control device for two zones of extruder, related motor control,refrigerator control.
4)Water sink stents
Square tube welding, stable and convenient, detachable.

5)Cooling sink
Material:304stainless steel
6)Work platform
The surface is welded with a non-slip material. The frame is made of 12# channel steel shelf, supporting ladder and fence.
size:3000*2300*2500mm(L*W*H)
weight:800kg
7)Single knife cutting machine
Power:2.2kw-4P*1.5kw-4P(Control the drag speed and cutter speed of the glue stick separately)
Frequency converter brand:Kerun or alpha
Glue length:Can be adjust
Shape:cylindrical
Machine size:1100*820*1150mm(L*W*H)
Weight:320kg
8)Refrigerator
Refrigerating capacity:10P
Cooling type:air cooling
Evaporator type:Shell and tube type
Compressor:Sanyo
