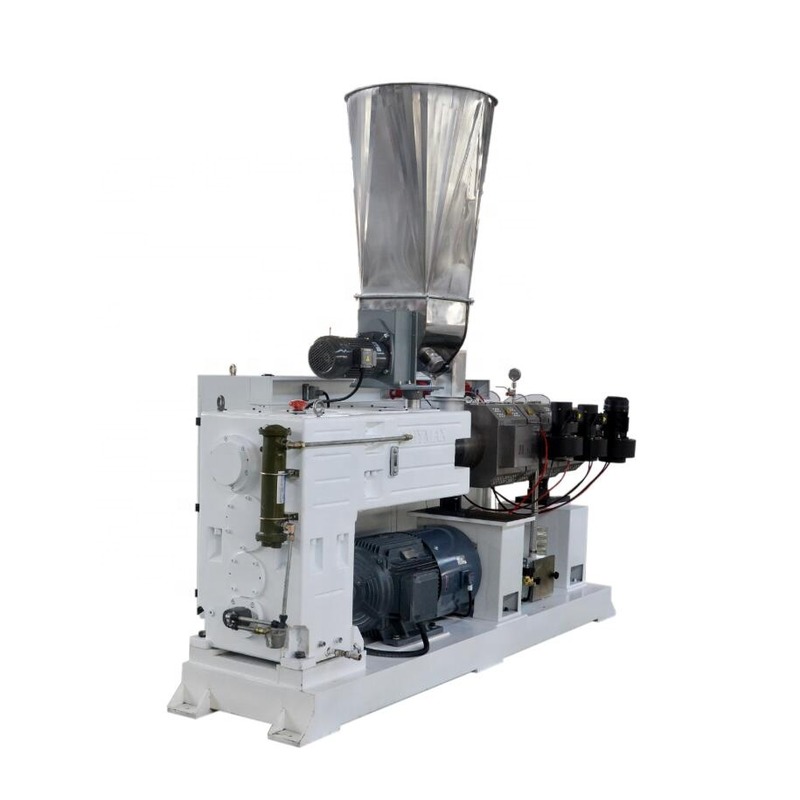

High Quality Extrusion Pipe Machine PVC Twin Conic Screw Extruder For Sale

1 Set
MOQ
High Quality Extrusion Pipe Machine PVC Twin Conic Screw Extruder For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Bar, PIPE, Granules, Sheet, Profile, Plates, Pelletizing
Plastic Processed: PVC, WPC, Wood-plastic
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 65/132
Screw L/D Ratio: 25:1
Screw Speed (rpm): 38 Rpm
Showroom Location: Turkey, Pakistan, Kenya, UAE, Algeria, Nigeria
Voltage: 380V Or Customized
Power (kW): 30
Weight: 3000 KG
Warranty: 1 Year
Key Selling Points: Energy Saving
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works
Marketing Type: Promotion 2022
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC, Engine, Gearbox, Screw
Item Name: PVC Twin Conic Screw Extruder For Sale
Screw&barrel: Bimetal+alloy Coating
Processing Material: PVC Powder Composite
Control System: PLC Siemen
Main Motor Brand: Siemens China
Main Motor: 30Kw
Heator: Energy Saving Type
Barrel: SKD Design With Protector
Gear Box: High Torque Verticle Type
Gear Box Cooling System: Inner & Outer Two Ways
Basic Infomation
Payment & Shipping Terms
Packaging Details: If LCL shipping, wooden case packagingIf FCL, then film protect and rope to holding.
Product Description

2022 promotional top quality 65/132 PVC twin conic screw extruder for sale



Product Description



Features:

  1. Verticle whole body design gear box, keep efficient and more powerful, and more stable, longer life time.
  2. Inner &outer cooling system make sure gear box working in good condition all the time.
  3. Screw in bimetal material and good design more suit for PVC material.
  4. Barrel in two part design with SKD bimetal layer, protect the screw and make sure its longer lifetime.
  5. PLC Siemens control system can record and let you anylize more easily.

Condition using:

SN

Condition

Specification

Description

1

Natural

circumstance

condition

Working place

Indoor use

Power source

No dangerous area

Humidity

85% no condensation

Temperature

0~40 ℃

2

Electricity

source

Installation capacity

90 kW

Power supply

3P+N+PE

Voltage/Frequency

380V/50Hz other can be option

3

Cooling water

Temperature

≤15 ℃

Water pressure

≥0.3MPa

Flow

~15 m3/h

4

Air condition

Compressor air pressure

≥0.6MPa

Flow

~0.9 m3/min



Description:

SN

Parts name

Specification

Description

1

Extruder

Extruder model

HYZS-65/132 conic twin screw

Output

250-350kg/h

Center height

1000mm

Weight

3100kg

2

Screw

Diameter

Ø65/132 mm

Material

38CrMoAlA + special alloy

Finish

Nitrogen-filled (0.50~0.70mm depth) and polish

Rotate speed

0~38 r/min

Core of the screw

Auto control for temperature

3

Barrel

Material

38CrMoAlA with bi-metal type

Inside finish

Nitrogen-filled (0.5~0.7mm depth) and rubbing

Heating control area

4 zones

Heating way

Cast aluminum/ ceramics

Heating power

20 kW

Cooling system

Low-noisy barrel cooling fan

Cooling power

0.3kwx3 sets

4

Gear box

Housing material

Ductile iron QT-500

Gear material

20CrMnTi

Gear surface

Hardened &ground in high precision

Axis material

40Cr

5

Twin screw Dosing

feeder

Supply material motor

1.1 kW

Speed range

1-50 RPM

Inverter

ABB heavy loader type

6

Vacuum degas

Vacuum degree

-0.004Mpa

Motor power

1.1 kW

7

Driving motor

AC motor power

30 kW

AC inverter controller

ABB

8

Electrical Control system

Control panel

PLC control system

Extra temperature zone for die head

5 zones

Components brand

Siemens, RKC, ABB, etc.
