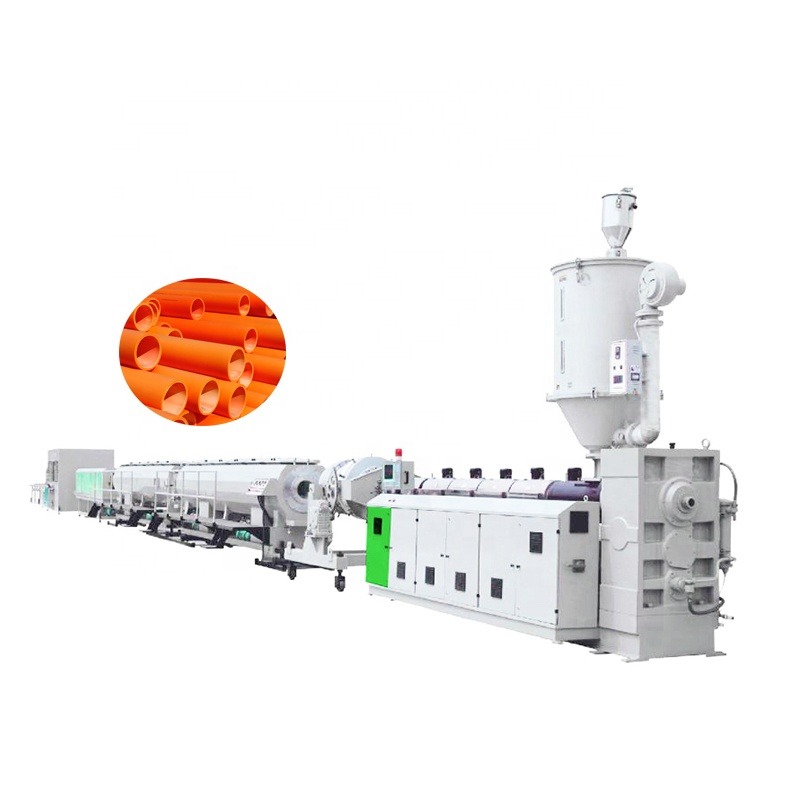

Pipe Plastic MPP Power Cable Protection Pipe Extrusion Machine Production Line

1 Set
MOQ
$45,000.00(>=1 Sets)
Price
Pipe Plastic MPP Power Cable Protection Pipe Extrusion Machine Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Pipe
Plastic Processed: PE, PP, HDPE, MPP
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 90
Screw L/D Ratio: 30:1
Screw Speed (rpm): 37.4 Rpm
Showroom Location: Egypt, Turkey, Italy, Germany, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Argentina, South Africa, Kazakhstan, Ukraine, Uzbekistan, Malaysia
Voltage: 380V/220V/440V
Dimension(L*W*H): 200000mmX2200mmX3000mm
Power (kW): 190
Weight: 25T
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Building Material Shops, Manufacturing Plant, Retail, Construction Works
Marketing Type: Hot Product
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw
Product Name: Plastic MPP Pipe Extrusion Machine Production Line
Raw Material: Modified Polypropylene
Product Type: Pipe Extrusion Production
Keywords: Plastic Pipe Production Line, MPP Pipe Production Machine
Inverter: ABB Brand
Contactor: Siemens Contactor
Temperature Control: Omron Brand
Motor Brand: SIENEMS Or Customized
Heating Way: Casting-aluminum Heating Device
Usage: Power Engineering
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Italy, Pakistan, Thailand, Malaysia, Argentina, Uzbekistan
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Film and plywood case packaging for Plastic MPP Power Cable Protection Pipe Extrusion Machine Production Line
Supply Ability: 1000 Set/Sets per Year mpp pipe making machine
Product Description
Application of Final Products

What is MPP pipe ?

MPP pipe, also known as MPP power cable protection pipe, is divided into excavation type and trenchless type. MPP trenchless pipe is also known as MPP pipe jacking or drawpipe. The main raw material of MPP tube is modified polypropylene. It has the characteristics of high temperature resistance and external pressure resistance. It is suitable for low and medium voltage power transmission lines and cables under 10kV.

Characteristics For MPP Pipes

The common specification of the pipe is 110mm ~ 250mm in diameter, which is divided into ordinary type and reinforced type. The common type is suitable for excavation and laying construction and trenchless crossing construction with buried depth less than 4M. The enhanced type is suitable for trenchless crossing construction projects with buried depth greater than 4M.

1. MPP tube has excellent electrical insulation. 2. MPP tube has high thermal deformation temperature and low temperature impact performance. 3. MPP tube tensile resistance, compression performance is higher than HDPE. 4. MPP pipe quality is light, smooth, friction resistance is small, can be hot fusion welding butt. 5. MPP tube long-term use temperature of a 5 ~ 70℃.
Application Fields
MPP USES modified polypropylene as the main raw material, is without a lot of dredging, digging and damage to the road surface, in roads, railways, buildings, river bed and other special sections of the pipeline, cable and other construction projects. Compared with the traditional "excavated buried pipe method", trenchless power to meet the environmental requirements of the current pipe engineering, remove caused by the traditional construction of the dust float in the sky, a nuisance factors such as traffic jam, this technique can also be laying pipelines in some areas can not be implemented excavation work, such as sites protected areas, downtown, crops and farmland protection areas, highways, rivers and so on.

1. unicipal, telecommunication, electric power, gas, water supply, heat and other pipeline projects. 2. Urban and Rural Trenchless Horizontal Directional Drilling and Open Excavation Electric Drainage Projects. 3. Urban and rural trenchless horizontal directional drilling sewer, sewage and drainage pipe projects, industrial wastewater discharge projects.
Product Description

Plastic MPP Power Cable Protection Pipe Extrusion Machine Production Line

MPP pipe production line selection of PP, MPP pipe special efficient extruder, screw with a barrier and mixing head structure, the barrel using a new slotting machine barrel, plasticizing and mixing effect is good, the extrusion capacity is large and very stable. Special screw structure, good plasticizing quality, the inner and outer wall of the extrusion pipe is bright.

The operation and time of the whole production line are programmed controlled by PLC. It has a good man-machine interface. All process parameters can be set and displayed through the touch screen.
Complete MPP Pipe Production Line
1
Raw material feeding system
1 set
2
single screw extruder
1 set
3
Pipe extrusion mold
1 set
4
Calibrator
1 set
5
Spray vacuum shaping tank
1 set
6
Cooling water tank
2 set
7
Ink printer (choosable)
1 set
8
Pipe haul off machine
1 set
9
Pipe cutting machine
1 set
10
Stacker
1 set
The die head has the characteristics of low temperature of solution, good mixing performance, low pressure of die cavity and stable production.

The whole machine head mould can produce pipes in the range of 50-250. Different specifications of pipes can be produced by changing different specifications of molds. The mold is made of tin bronze.
The vacuum sizing box specially designed to control the vacuum degree ensures the dimensional stability and roundness of the pipe.
True empty box is mainly used with plastic extruder, used for vacuum sizing of PVC, PP-R, PE, PP, PE-RT and other pipe materials, so that the surface finish of the pipe is good. This machine box is made of stainless steel SUS304 material, the body up and down, left and right, front and rear three-dimensional movement, spray using four to six nozzle cooling. Real empty box automatic water and drainage function. Box models can be made according to customer requirements of different requirements of specifications, fixed pipe straight mold can be made from 16-630mm.

No chip cutting machine, smooth cutting surface without burr.
Specification
Name
Extruder model
Machine dimension (mm)
Max. total power (kw)
Total weight (kg)
Single screw extruder
SJ90/30
3780X600X3000
110
6000




Extrusion mold (inner dia.)
90


2000xφ326




50
1200

110
1500

160
1800

175


2300xφ440
1950

200
2100

250
2300
Forming machine
model 315
4300x1750x1800
30
5000
Cutting machine
Model 315
2900x1400x2060
7.5
2500
Stacker
Model 315
5220x2100x830

230
Related Products

PPR Pipe Production Line
Packing & Delivery
Our Service
BOGDA Service For Each of BOGDA Plastic Extrusion Machinery
Pre-sale services:
Based on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients.

Sale services:
Our experienced technicians are available on the phone also the Internet, clients can get instance guidance by telephone, email, online service anytime and anywhere.

After-sale services:
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and email our clients to check the equipment working condition and offer suggestions for maintenance.
Company Profile
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.
FAQ
1. How many electric, water, air need for the machines?
BOGDA: technical department supply the whole layout for workshop details.

2. Can I operate machine if don’t have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements

3. Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.

4. How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)

5. How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

6. Where can we get spare part?
BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
