Home /Products/Impact Extrusion Machine/Eva Tpu Tpr Adhesive Pellet Hot Melt Screw Bottom Water Pelletizing Machine Twin Extruder

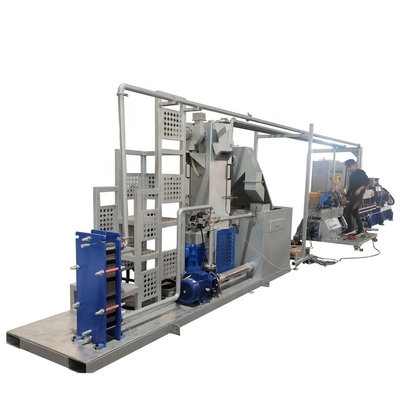

Eva Tpu Tpr Adhesive Pellet Hot Melt Screw Bottom Water Pelletizing Machine Twin Extruder

1 Set
MOQ
$95,000.00(1 - 1 Sets) $94,000.00(>=2 Sets)
Price
Eva Tpu Tpr Adhesive Pellet Hot Melt Screw Bottom Water Pelletizing Machine Twin Extruder
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Granules, Pelletizing
Plastic Processed: PP, EVA, PET, HDPE/PP, TPE TPR TPU TPV POE SBS
Condition: New
Screw Design: Double-screw
Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Material: Wr5/W6Mo5Cr4V2/38CrMoAl/SKD11
Screw Diameter (mm): 71mm
Screw L/D Ratio: 28:1-60:1
Screw Speed (rpm): 600 Rpm
Showroom Location: None
Voltage: 200V/380V/400V/415V/480V Or Customized
Dimension(L*W*H): Per Final Machine Design
Power (kW): 132
Weight: 5500
Warranty: 1 Year
Key Selling Points: Easy To Operate
Applicable Industries: Manufacturing Plant, Polymer Factory, Pellets Making Factory, Engineering Material Making Factory, Thermoplastic Pellets Factory, EVA Hot Melt Glue/adhesive Factory
Marketing Type: Hot Product 2020
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Screw
Control: Simple Button Or PLC
Color: Customized Color
Function: Blending/mixing/kneading/extrusion/pelletizing
Inverter: ABB/Yaskawa/per Customer Request
Raw Material: PP, PE,ABS, PC, PA, PET, PS, Etc.
Final Product: Granules, E.g.filler/Color/Functional MB, Engineering Plastic, Etc.
Motor: WANNAN/Siemens Beide
Temperature Control: RKC/Omron
Automatic Grade: High Automation
After-sales Service Provided: Video Technical Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: plywood carton plywood tray nude packing
Supply Ability: 500 Set/Sets per Year
Product Description

Kindly Reminder

The machine configuration details and accurate price will be given after all details confirmation of your demands.
Products Description
Scope of Application
KET-75 Twin Screw Extruder
Hot Melt Eva Tpu Tpr Adhesive Pellet Granules Twin Screw Underwater Pelletizing Machine Extruder
--Polymer blending & filling modification
--Engineering polymer & glass fiber reinforcement
--Universal color masterbatch, functional masterbatch
--Special material, powder coatings
--Reactive extrusion, degassing & devolatilization
Model No.:
KET-75 Twin Screw Extruder
Screw Diameter:
71mm
L/D:
28-60
Motor power:
90-315kw
Screw Speed:
600-800rpm
Output:
300-1000kg/hour
Name of part:
Melt pump and die
die material:
Stainless steel
Die mould plate Material:
wear resistant material in the die head of template
Life time of die:
24 months
Heating:
using heating rod to heat, the heating temperature is 100℃~250℃
Purpose of melt pump:
make the melt flow evenly and stably
Name of part:
Pelletizer
Motor power:
2.2kw
Speed：
3000rpm
Control:
Famous brand invertor
Granule shape：
perfect round shape
Output:
200-400kg/hour
Name of part:
Water tank and Dewaterer
Water pump Power:
4kw
Dewaterer power:
4kw,Max. throughput 400 Kg/h
Material Seperating and cooling:
Cyclone separating device and cooling fan are installed on the entry
Easy operation:
The filter screen use quick open structure. It is easy to open and clean
Bypass pipes
(pneumatic valve):
Equipped with pneumatic valve, using quick opening structure in the connection

Applicable material:

Thermoplastic Elastomer TPV, TPU, TPE, TPR, POE, EVA, SBS, etc.

Auxiliary machine for options-----Premixing part:

High and low speed mixer High speed mixer Color mixer Screw conveyor(loader)

Auxiliary machine for options-----Feeding machine

Force feeder Side feeder Mixing feeding hopper Gravimetric feeder
Our Advantages
Output and input shaft of gearbox are designed as parallel type. Widely used in standard compounding of MB, filling, engineering plastics, reinforcement, etc.. T/A3≤7.0, Screw speed ≤600rpm.
And also we have high torque gearbox for option. T/A3 is 7.5-12, Screw speed is 600-1000rpm. which provided high output and energy saving advantages.
Various options for different demands:
1. For wear application: C shape liner; Cr26, Cr12MoV, W6Mo5Cr4V2.
2. For corrosion application:38CrMoAl, Ha C alloy.
3. For wear and corrosion application: Nickel based alloy; 316L, 304 etc.; Wr13, SAM26 etc.
4. Different types for option: closed barrel, open barrel, side feeding barrel, open type side feeding barrel, etc.
As key part of the twin screw extruder, they are made by our CNC, which provides better intermeshing and self-wiping performance which ensures the entire processing b(residence time distribution ).
different shapes and different material for options: W6Mo5Cr4V2, SKD11， 38CrMoAl, Wr5(HIP), Ni60, WC-Co, Cr15, WR13, SUS440S, C276, etc.
Twin screw volume metering feeder:
suitable for all kinds of materials, including powder, fibrous and flake materials with poor fluidity.
Single screw volume metering feeder:
suitable for all kinds of granular materials, including powder with good fluidity and uneven recycled materials.
High-speed sider feeder: Mainly for feeding of GF, Talc, CaCO3, etc. It is of high precision, high feeding capacity and stable performance. Feeder barrel adopts "∞" whole-in-one bushing ,features wear resistance and corrosion resistance. Feeder screw adopts building blocks type for easy changing. So the feeder is energy saving, long life and enable the customer high profit.
Die mold for water cooling strand pelletizing
We also can supply you more choices:
1. water ring die face hot cutting
2. air cooling die face hot cutting
3. air cooling belt conveying pelletizing
4. underwater pelletizing

Electronic control cabinet

Adopts famous brand electrical components.
Various control system for option:
1. Traditional button press cabinet
2. PLC control system
3.PCC system
All line adopts interlocking control system for safe production.

Vaccum venting system

It can exhaust, dehydrate and extract water and volatile matter from the processing material, which will make the final pellets purer and better quality.

Barrel Heating and Water cooling System

Heating: cast copper /aluminum/ iron/Infrared heater etc. for your options.
Cooling: The cooling pipeline of each barrel is equipped with manual shut-off valve and solenoid valve. The former controls the flow of soft water, and the latter automatically controls the on-off of soft water in linkage with the temperature control instrument.
Product Paramenters
Model #
Screw diamter(mm)
Groove Depth(mm)
L/D
Main Motor(KW)
Screw Speed(rpm)
Output(KG/hour)
KET20
21.7
3.85
28-48
4
600
5-15
KET30
30.7
4.7
28-60
15-22
600
30-80
KET36
35.6
6
28-60
15-22
600
15-80
KET40
41.2
7
28-60
30-37
600
50-150
KET50
50.5
9
28-60
37-45
500
80-200
KET52
51.5
8.8
28-60
55
600
100-250
KET60
59.5
8
28-60
75-90
400/500/600
100-300
KET65
62.4
11
28-60
75-90
400/500/600
150-400
KET75
71
12
28-60
90-132
400/500/600
250-660
KET95
91
14
28-60
200-315
400/500/600
650-1500
KET135
132
23.5
28-48
600
300/400
1500-3000
Product packaging
Exhibition
Manufacturing Technique
Company Profile
Nanjing Keerte Mechanical Equipment Co., Ltd. is a professional manufacturer of parallel twin screw extruder compounding and pelletizing lines, and also we make the related parts, including screw elements, barrels, heaters, die head templates, feeders, etc.

The high quality of all products are under control of our complete and scientific quality management system. Meanwhile, we have been researching and developing high efficient, energy-saving and environment friendly products to satisfy the demands of all our customers.

Thank you to all of our customers for your long-term trust and support to us. We promise to provide you good quality machine at competitive prices and heart to heart service. Our professional technical engineer will be always there to offer you technical support and consultant. Looking forward to your visit to our factory!

Pre-sales Services

1. Tell customer the features and application of the machine in details.
2. Help customer to select suitable, cost-effective and practical machine configurations, as per the material features and processing requirements.
3. Provide machine trial running for material testing.

Sales Service

1. Provide engineering conditions required by the project and design the layout of the installation of the whole machine line for customer according to customer's factory condition.
2. Update the production schedule with you in time.
3. Discuss with you about the process required for your materials, screw combination arrangement, barrels arrangement, etc. Finally we will provide you the related drawings of screw combination and barrels arrangements.
4. The machine will be made according to the technical docs confirmed by our both parties and shipped on time.

After-sales Service

1.Always provide on-line support and
video technical support.
2. Provide instructions about how to install and debug the machine. And also provide the training of the operation workers.
3. Establish detailed user service files and provide lifelong tracking service.
4. The whole machine is guaranteed for one year
5. Ensure sufficient supply of spare parts and provide free technical consulting services for a long time.
FAQ
1. Where are we?
We are located in No. 371, Zhening East Road, Zhetang Town, Lishui District, Nanjing City, Jiangsu Province, China. It is
about 10Km from Nanjing Lukou Airport.
2. How to get to our factory?
 (1) You can get to the Nanjing Lukou Airport by air directly, then call us and we will pick you up by car.
(2) You can take the train to Nanjing South Railway station, and then taking the Metro line S1 and transferring S7 to
Zhetang station, we will pick you up by car.
If you don’t know how to take the metro line, just call us in Nanjing South Railway Station and we will pick you up there.
3. Why choose us?

(1) When we started our business, we are specialized in the parts of twin screw extruder, e.g. screw elements, barrels,
heaters, die head templates, feeders etc. We have been providing high quality parts for domestic or abroad well-
known brands company, such as Samsung Engineering Plastics, LG Chem, Kingfa Technology, Silver Age Sci & Tech,
Wote Advanced material, Fuheng New Material. Gradually, we grown up as a professional manufacturer of twin-
screw extruders and accessory parts.
(2) We have complete and scientific quality control system to ensure the high quality of all machines and spare parts.
(3) Our experienced technical engineer can support you with the most suitable solution. And also our professional
engineers and technical employee can help you to arrange the layout and installation of whole line as per your
requirements.
(4) We could always offer you on-line technical support.

4. What’s the payment term?
 30% advance payment by T/T and 70% balance payment shall be paid before shipment.

5. If it is possible to test run material before placing the order?
Yes. Before making your decision buying the equipment or not, you can bring or send some material here to test-run
the equipment.

6. What is the packing method?
 The whole machine will be wrapped with protecting films to avoid the rusting problem and also it will be fixed properly
in the container to ensure it get to your factory safely.

7. How long of the warranty time?
Our warranty period of the whole machine is 1 year(excluding the improper opera
