Home /Products/Continuous Extrusion Machine/Hot Selling Good Quality Plastic Granules PVC Extrusion Production Line Large Single Screw Extruder

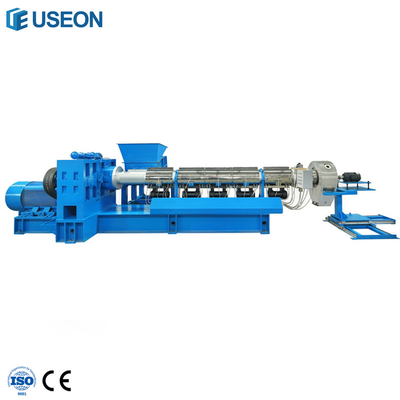

Hot Selling Good Quality Plastic Granules PVC Extrusion Production Line Large Single Screw Extruder

1.0 Sets
MOQ
Hot Selling Good Quality Plastic Granules PVC Extrusion Production Line Large Single Screw Extruder
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Granules, Pelletizing
Plastic Processed: PE, PVC
Condition: New, New
Screw Design: Double-screw
Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 65
Screw L/D Ratio: 8-32
Screw Speed (rpm): 93 Rpm
Showroom Location: None
Voltage: Customized
Dimension(L*W*H): Customized
Power (kW): 30
Weight: Customized
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant
Marketing Type: Hot Product 2021
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox
Name: PE Compounds Extruder
Max. Motor: 30 KW
Output: 80-100 Kg/h
After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Product Description
Hot Sale Good Quality Pvc Plastic Extrusion Production Line large single screw extruder
Products Description
Single screw extruder is equipped with smooth or grooved feeding barrels with L/D from 8 to 32. It is mainly used for processing melt with venting or vacuum functions for recycling or products extrusion, typically including polyolefin and engineering recycling, melt blown fabric, engineering plastic direct extrusion of films, sheet, plates, pipes, and profiles, such as PET, PA, PBT, ABS PC.
Model
Diameter
(mm）
Max. Speed
(rpm)
Motor
(kW)
Throughput
(kg/h)
Screw Type
SAT40
41
800
75
150-250
Twin-screw
SAT52
51.4
600
132
350-500
Twin-screw
SAT65
62.4
600
220
500-900
Twin-screw
SAT75
71
600
280
700-1200
Twin-screw
SAT95
93
330
600
1300-2400
Twin-screw
SAT110
110
330
650
1800-3000
Twin-screw
SAT135
130
330
1000
2500-3500
Twin-screw
EC40
41
600
30
70-120
Twin-screw
EC52
51.4
600
55
130-220
Twin-screw
EC65
62.4
600
90
200-350
Twin-screw
EC75
71
600
132
400-600
Twin-screw
EC95
93
330
315
700-1000
Twin-screw
EC110
108
330
355
900-1200
Twin-screw
TDY40
41
600
30
70-120
Twin-screw
TDY52
51.4
600
55
130-220
Twin-screw
TDY65
62.4
600
90
200-350
Twin-screw
TDY75
71
600
132
400-600
Twin-screw
TDY95
93
600
315
700-1000
Twin-screw
TDY110
108
400
355
900-1200
Twin-screw
Lab-20
22
720
7.5
5-20
Twin-screw
Lab-30
30
600
18.5
15-40
Twin-screw
TDD20
20
93
3
5-10
Single-screw
TDD65
65
93
30
80-100
Single-screw
TDD120
120
93
160
500-600
Single-screw
TDD150
150
93
200
700-900
Single-screw
TDD180
180
93
280
800-1300
Single-screw
TDD200
200
93
355
1200-1500
Single-screw
TDD240
240
93
455
1500-2000
Single-screw
SAT-T52
51.4
600
110
300-400
Triple-screw
SAT-T65
62.4
600
160
500-700
Triple-screw
SAT-T75
71
600
250
800-1200
Triple-screw
Screw Elements
Barrels/Liners
High Torque Gearbox
Heating System
Cooling System
Safty Production
Dewater system
Classifier
Control System with Remote Control
Pelletizing System
Water Cooling Strand Pelletizing System
It is suitable for most polymer compounding production, which features simple structure,easy operation and convenient maintenance.This system consists of strand die, water batch, air knife,strand pelletizer and vibrating classifier.
Air Cooling Strand Pelleizing System
This system incorporates with single stage extruder. It is suitable for certain recipes,such as PP base filler degradable and WPC,which is to sticky to be cut by air cooling die face pelletizer.The other merit of this system is that lets the material avoid contracting with water. This system includes die head, air cooling belt conveyor, strand pelletizer and vibrating classifier.
Under Water Strand Pelletizing System
It is suitable for plastic recycling which needs to change the filter frequently. The strands go into the pelletizer automatically by the water flow,even the strands break during changing the filter.So there wll be almost no waste during the manufacturing process. This system consists of strand die, water bath, strand pelletizer, centrifugal dewater and vibrating classifier.
Air Cooling Die Face Pelletizing System
This system incorporates with tandem compounder.It is suitable for certain recipes, such as PVC, LLDPE, high filling masterbatch,degradable masterbatch, HFFR, WPC etc. Which has ring type and centrifuge type as per the property of the raw material.The meri of this system is that lets the material avoid contacting with water. This system includes die head,air cooling pelletizer,air cooling conveyor and vibrating classifier.
Water Ring Pelletizing System
This system incorporates with tandem compounder.It is suitable for certain recipes, such as PVC, LLDPE, high filling masterbatch,degradable masterbatch, HFFR, WPC etc. Which has ring type and centrifuge type as per the property of the raw material.The meri of this system is that lets the material avoid contacting with water. This system includes die head,air cooling pelletizer,air cooling conveyor and vibrating classifier.
Underwater Pelletizing System
Underwater pelletizing system is good for most of polymers. Especially for TPU and TPV or similar elastomer, its advantage plays well. This system consists of die head, underwater pelletizer, water circulating system,and dewater system. It can incorporate with auto-packaging system.
Application
Given the material and recipes, USEON can offer an array of compounding systems with options for compressing or molding a material into pellet form.These pellet are used as follows：

Filler Masterbatch

Filler Masterbatch are concentrates of CaCO3 or Talc or BaSO4 in a polymer base.

Color Masterbatch

Color masterbatch is used for any polymer and all kinds of product.

Additive Masterbatch

Additive Masterbatch are used in a wide variety of application.

Engineering Plastic

USEON SAT-X serial Extruder with high torque gearbox is special designed for this application.

Biodegradable Plastic

Given its durability and longevity, plastic waste becomes a huge challenge for a greener, better world.

Cable Compounding

USEON is committed to providing advanced extruder for all kind of cable compounding

Thermoplastic Elastomers (TPE)

It is a class of copolymers or a physical mix of polymers that consist of materials with both thermoplastic and elastomeric properties.

PVC Compounding

PVC is durable, cheap, and easily worked. Before PVC can be made into finished products, it always requires conversion into a compound by the incorporation of additives.

3D Printer Filament

It is a thermoplastic material used in 3D printers.The materials that can be used in our production line are: ABS, PLA, PET, HIPS, PVA etc. compounding with color masterbatch.
Recommend Products
Foam Extrusion Machine >>
Twin Screw Extruder Machine >>
Sheet Extrusion Machine >>
PET Recycling >>
Company Strength
Established in 2006, Useon has been focusing on polymer extrusion equipment and process technology. Our professional and aspiring team has made a number of milestones in designing machines for plastic processing.We are committed to providing advanced polymer extrusion equipment and total solutions for our customers. As the most qualified Chinese partner in polymer extrusion equipment,Useon continues to serve many Fortune 500 international group's. Assisting by educating our clients and averting potential troubles through our experience we can help in many facets.We can be reached via email, telephone, and fax. We are bilingual,easily accessible and readily available. Always glad to help you in your endeavors.
