Home /Products/Continuous Extrusion Machine/High Quality Stone Paper Production Line Stone Paper Extrusion Line

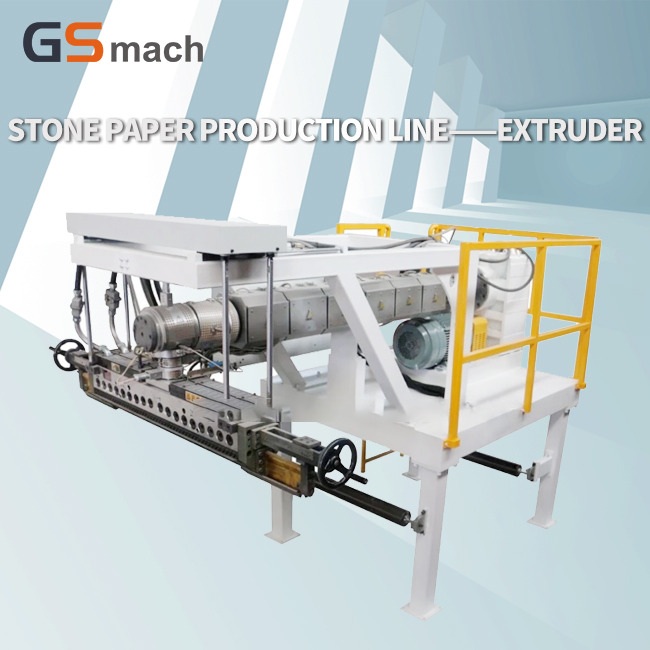

High Quality Stone Paper Production Line Stone Paper Extrusion Line

1 Set
MOQ
$900,000.00(>=1 Sets)
Price
High Quality Stone Paper Production Line Stone Paper Extrusion Line
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Granules, Sheet, Film
Plastic Processed: PE, PP, PVC, ABS, PA, EVA, PC, HDPE, ABS/PP, HDPE/PP, PE/PP, LDPE, PE+Caco3
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 120
Screw L/D Ratio: 30:1
Screw Speed (rpm): 1480 Rpm
Showroom Location: Turkey, United States, Germany, Uzbekistan
Voltage: 380v/220v/3p
Dimension(L*W*H): 30m*5m*3m
Power (kW): 150
Weight: 10000 KG
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works
Marketing Type: Hot Product Stone Paper Making Machine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1.5 Years
Core Components: Bearing, Motor, Gear, Engine, Gearbox
Brand: GS-mach
Name: Stone Paper Making Machine
Kneader: 75L
Raw Material: PE+CACO3
Usage: Wide Usage
Final Product: Writing,printing,books,magazine Etc Paper
Capacity: 800-1000kg/h
Keywords: Stone Paper Making Machine
Motor: WANNAN
Extruder: TWO STAGE
Basic Infomation
Payment & Shipping Terms
Packaging Details: stone paper making machine wooden package
Supply Ability: 15 Set/Sets per Year
Product Description
Video Presentation
wall paper stone manufacturer removable stone paper adhesive making machines

Other Hottest Products

Production Line List
NO.
MARKS & NUMBERS
DESCRIPTION OF GOODS & SERVICES
QTY/SET(S)
1
GS-Mach
GS-KN110L + 75/180 Two stage pelletizing line for stone paper with Formulation (capacity:800~1000kgs/h)
1
2
GS-Mach
GS-LY1600 Paper making machine:
casting line making Stone Paper (Co-Extrusion A/B/A, 1600MM Width) GSD-120 single screw extruder + GSD-80 Co-extruder line.
Capacity around 600-800kgs/h. Thickness from 65-500 micron
1
3
GS-Mach
Slitting Machine
1
4
GS-Mach
Lab Machine
1

Stone Paper Casting Production Line List and Configuration

Stone production line configuration: 110L kneader→Conveyor→Twin screw force feeder→G75B twin screw extruder→GS180 single screw extruder→Auto hydraulic screen exchanger→hot cutting die head→Hot cutting auxiliary equipment→stone paper casting machine→Slitting machine→cutting machine




EQUIPMENT TECH. PARAMETERS
1. Stone Paper Granules Making Machine
Products Spec.
3mm-5mm pellets.
Capacity
1000-1200kgs/h.
Operation Environment
Temperature 5°C to 35°C; Humidity 30% to 80%; Altitude less than 1000m.
Noise level
The main engine is 3 meters below 85 decibels, some fans may exceed 85 decibels, and some auxiliary equipment like fans may more than 85 decibels.



2. Stone Paper Casting Production Machine Configuration
Products Spec.
Thickness 65 u m - 500 u m, width of 1800mm.
Capacity
The maximum speed of 800kg/h is 50m/min.
Operating Environment Requirements
Temperature 5 ° C to 35 ° C, humidity 30% to 80%, altitude less than 1000m.
Noise level
The main engine is 3 meters below 85 decibels, and some fans may exceed 85 decibels.



3. Cutting Machine




Capacity and Scale
Annual output of 8640 tons of equipment configuration as follows:
Equipment Name
Product
Capacity
Sets
Annual Output
Granulation Line
Master Batch
800kgs/h
1
7000t
Casting Paper Machine
65-500μm Thick Paper
650-800kgs/h
1
7000t
Slitting Machine
Paper Roll
50-100m/min
1
/
LAB Test Machine
/
Mating
1
Mating




Production Advantages
1. The main raw materials of environmental paper are calcite and polyethylene, contain no plasticizers or other toxic substances;
2. Compared with traditional wood pulp paper, environmental paper does not need to cut down trees, no waste water, gas and solid waste discharge, the production process is environmental friendly;
3. The paper is waterproof, moisture-proof, tearing-resistant, anti-folding, moth-proof and with excellent properties;
4. The paper can be naturally cracked under conditions of sun exposure, wind blowing and rain. It can replace non-degradable plastics and reduce white pollution;
5. The paper through the EU (food grade), REACH, ROHS and other standard testing, is the international standard recognized environmental protection materials.
Wide Application
ITEMS
APPLICATION AREA
Film Blowing Paper
Products to meet the requirements of simple printing process, mainly used as a waterproof notebook, books and other cultural
paper, most alternative to wood pulp paper in the use of double glue paper.
Casting Thin Paper
Products to meet the requirements of complex printing process, mainly used for cultural paper, advertising, packaging paper, such
as books, posters, hanging paintings, maps, fashion magazines, etc; Most of the replacement of wood pulp paper coated paper, matte
paper.
About us
GS-Mach is professional in plastic, rubber, chemical machinery researcher, designer and manufacturer with CE and ISO9001 certificates.

Orientated by the world market, we insist on strengthening our talents, innovating, refining our quality and improving the management, aiming to supply our customer the best products and make the GS-mach a worldwide top machinery manufacturer and supplier.

Our business is consisted of three parts: GS-mach Extrusion, GS-mach Recycle and GS-mach Rubber Tech.

1. GS-mach Extrusion: Specializing in the researching and manufacturing the machinery for plastic extruding, granulating, extrusion molding and extrusion filament.stone paper making machine

2. GS-mach Recycle: Specializing in the researching and manufacturing the machinery for waste plastic, rubber and chemicals recycling.

3. GS-mach Rubber Tech: Specializing in the rubber machinery researching and manufacturing.




Our Services
Before-Sale
1. Introduce products and applications detain
2. Recommend suitable solution
3. Provide with reference information
4. Offer lab for lest

During Manufacturing
1. Provide with layout and engineering conditions
2. Inform the project processing status
3. Offer other documents

After-Sale
1. Provide with installation, commissioning and training
2. Offer stone paper making machine spar parts
3. Provide with necessary technical support for new application



FAQ



1. Q: What is the delivery time?
A: 6 months after receiving the receipt of deposit.

2. Q: What is the payment term?
A: 50% deposit in advance, the remaining 50% payment before delivery.

3. Q: What about the Guarantee?
A: 12 months after the delivery of the equipment

4. Q: What should be cared regarding delivery inspection?
A: Before delivery, the equipment shall be inspected by both parties and the materials provided by the buyer shall be inspected.

5. Q: What about the installation and debugging?
A: Company will send 2～3 engineers to the customer's factory for installation and debugging, and the cost of round-trip air tickets and accommodation for the engineers shall be borne by the buyer. In addition, the buyer shall pay the engineer $100 per person per day.
