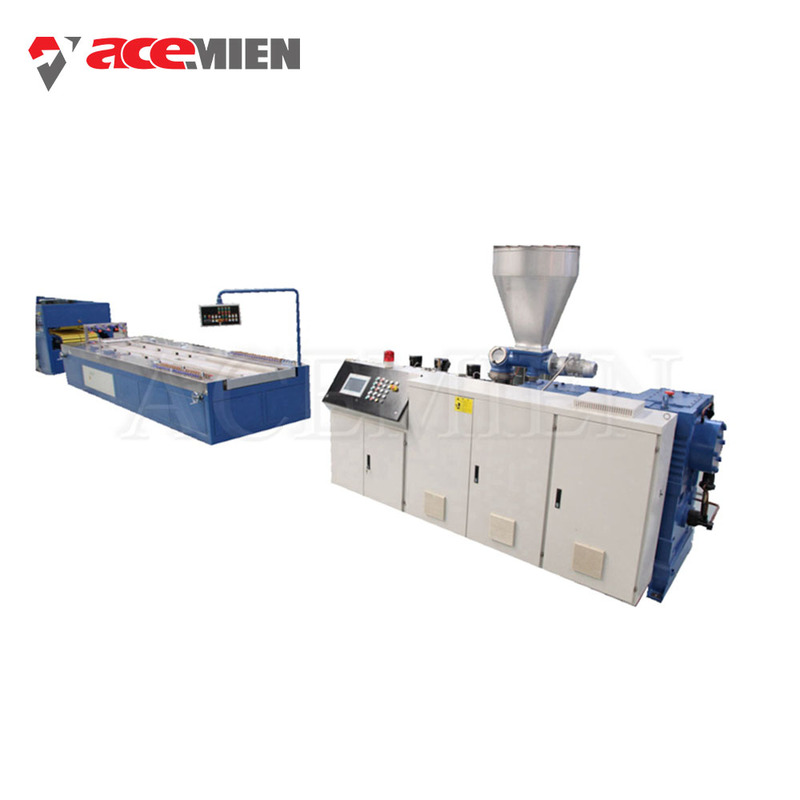

High Quality Profile PVC Ceiling Panel Making Machine / PVC Ceiling Extrusion Line

1.0 Sets
MOQ
High Quality Profile PVC Ceiling Panel Making Machine / PVC Ceiling Extrusion Line
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Profile
Plastic Processed: PVC
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 80
Screw L/D Ratio: 1:173
Screw Speed (rpm): 100 Rpm
Showroom Location: Egypt, United States, Italy, Germany, Peru, Saudi Arabia, Indonesia, Pakistan, India, Spain, Thailand, Morocco, Kenya, Chile, UAE, Colombia, Bangladesh
Voltage: 380v 50HZ
Dimension(L*W*H): 20m*3m*3m
Power (kW): 150
Weight: 10
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Food Shop, Construction Works , Advertising Company
Marketing Type: Hot Product
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Engine
Color: Customized
Inverter: ABB Frequency Controller
Motor: Siemens
Contactor: France Schneider Contactors
Temperature Control: Omron Brand
Basic Infomation
Payment & Shipping Terms
Packaging Details: Customized
Supply Ability: 300 Set/Sets per Year
Product Description
Products Description

Product features:

The plastic ceiling panel production line can produce various kinds of decorative ceiling panel , wall panel and profiles, which are widely used for decorating and protecting the external surface of hourses, office buildings, top class villas. It can be laminated with PVC, ASA, PMMA material etc. on the surface. It can be used in hot or cold, dry or wet area, which can bear long period irradiation of ultraviolet radiation and bad weather such as gale and rainstorm, long life and easily to operate. And it also has the advantages of good fireproofing, high capacity, easy installation, low price and long using life.
Product Name
PVC ceiling panel production line
Surface Treatment
Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy
Thickness
5mm, 6mm,7mm,7.5mm,8mm,9mm,10mm,11mm,12mm
Width
180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm
Length
2m, 2.7m, 3m, 4m, 5.8m or customized
Weight
1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm
Our Advantages
Machine List
No.
Name
Qty
Remark
1
Spring loader for extruder
1

2
SJZ series conical twin screw extruder
1

3
Extrusion mould unit
1
Change mould for different shape
4
Vacuum calibration Table
1

5
Haul off unit
1

6
Lamination & hot stamping machine(inline)
1
Change film for different pattern
7
Blade Cutter
1

8
Stacker
1

Extrusion system
Brand: ACEMIEN
Original: China
Technical parameters:
a.Main motor :37kw Siemens Brand.
b.Inverter:ABB
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.

Extrusion mould
Brand: ACEMIEN
Original: China
Technical parameters:
a.special design for PVC profile
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.

Forming Machine
Technical parameters:
a. Setting table (5000mm*1400mm) b. Vacuum pump: with silencer, high installation accuracy, anti-vibration, with over-current protection device c. Stainless steel sink, cast aluminum profile track, wear-resistant and corrosion-resistant



Haul-Off
Technical parameters:
a. Speed control provided by the inverter b. Effective traction width: 600mm c. Traction speed: 0.5-4.6m/min





Lamiation
Technical parameters:
a.Max working width:200mm
b.Max working thickness: 2-50mm


Stacker
Technical parameters:
a. Turning rack length: 4.5 meters b. Cylinder flip, limit switch design c. Detachable, the contact part of the product is wrapped by rubber block
Company Profile
VR
Jiangsu Acemien Machinery Co.,Ltd, Our company was founded in 2013. Company area is 15000m2 . Acemien Company specialized in plastic extrusion equipment and post-consumer plastic recycling equipment. We persist on the technological innovation, research and develop of the products, and keep the high quality and sincerity service. And we have rich experience of product design and profound theoretical knowledge from the practice.We concentrate on five series equipment, they are follows:
1)Synthetic resin tile and PVC corrugated tile extrusion equipment
2)PVC Imitation marble sheet and profile extrusion equipment
3)post-consumer plastic recycling and granulation equipment
4)conventional extrusion equipment such as pipe/profile/sheet 5)Auxiliary equipment such as mixer/crusher/pulverizer.
Certifications
Acemien Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your
airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan,installation direction, and manual book in English to Buyer on time. ACEMIEN will provide long-term technical guide.
FAQ
Q1. Are you a factory or a trading company?
A1: Yes, we are manufacturer with more than 10 years' experience.
Q2. Are there other machine not listed in the catalog?
A2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for,please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3.How long is the warranty period?
A3.All of our products have one year warranty.
Q4.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
A4.If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
