Roof PVC Roof Plastic Sheet Extruder Making Machine

1.0 Sets
MOQ
Roof PVC Roof Plastic Sheet Extruder Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Roof
Plastic Processed: PVC, ABS
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating Conical Twin-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 80
Screw L/D Ratio: Unapplicable
Screw Speed (rpm): 50 Rpm
Showroom Location: Turkey, Mexico
Voltage: Customized
Dimension(L*W*H): 25m*3m*3m
Power (kW): 250
Weight: 10 KG
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Construction Works , Advertising Company
Marketing Type: Hot Product
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear
Name: Plastic Roof Tile Making Machine
Raw Material: PVC Powder
Usage: Roofing
Color: Customized
Inverter: ABB Frequency Controller
Motor: Germany Siemens Motor
Temperature: Omron Brand
Contactor: France Schneider Contactors
Power: 250KW
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 300 Set/Sets per Year
Product Description

Advantage:
Anti-noisy,anti-erosion,heating resistance and water proof.
Features:
1.Optional to adopt conical twin screw extruder and parallel twin screw extruder.
2.Supply formula guide and staple raw material purchase
3.Professional analyzing and design by considering production cost and tiles' performance.
4.Single layer or A+B/A+B+C/A+B+A layers avaibable
Product Description
____________________________________________________________________________

Extrusion Part
1. forced extruding
2. high quality
3.wide adaptability
4.long working life
5.low shearing speed
6.hard decomposition
7.good compounding& plasticization effect
8.direct shaping of powder material and etc.


Mould Part
Name: T-DIA or Ectrusion mould
1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design

Embossing Roller
1. Up roller is Embossing roller, the down roller is mirror Roller. Roller surface treatment by hard chrome plated (depth
0.10-0.15)
2. Design of spiral flow passage in roller
3. Motor separately drive to ensure consistent speed
Forming Machine
Name: Corrugated Roof Tile Forming Machine
1.Haul off roller material: Neoprene CR
2.Rise and drop method of mould: pneumatic
3.Fine adjustment method: manual


Cutter
Technical Parameters:
1.Special positioning cevice to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.The horizontal movement motor is 0.37kw
4.PLC HMI operation
Crusher
Technical Parameters:
1.The motor power is 11kw,15kw,22kw,30kw
2.Broken the amount of 200-600kg/h
3.Broken diameter 510*290
The main purpose:
Used for on-line production to produce edge scraps for recycling


High Speed Mixer Unit
Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75
High Speed Mixing Unite
Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75
No.
Machine name
Qty
1
Screw conveyor(with push device)
1pc
2
conical two screw extruder
1pc
3
Vacuum feeder for pellet
1pc
4
Drying hopper
1pc
5
single screw extruder
1pc
6
Extrusion mould
1pc
7
Distributor
1pc
8
Embossing roller
1pc
9
Forming machine with trimming device
1pc
10
Cutter
1pc
11
Stacket
1pc
12
Forming for ridger
1pc
13
Mould of top rodge,three way ridge,hip rodge,end of ridge
4pcs
14
Oven
1pc
15
Mixer unit
1pc
16
Screw conveyor for mixer unit
1pc
Product Application
___________________________________________________________________________________
Product Application

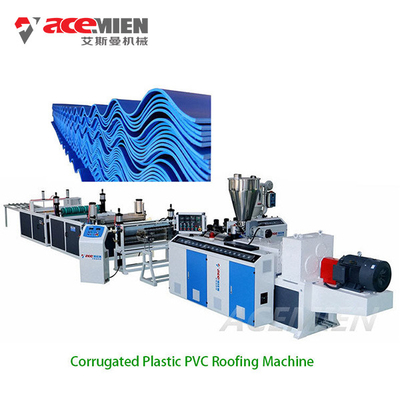

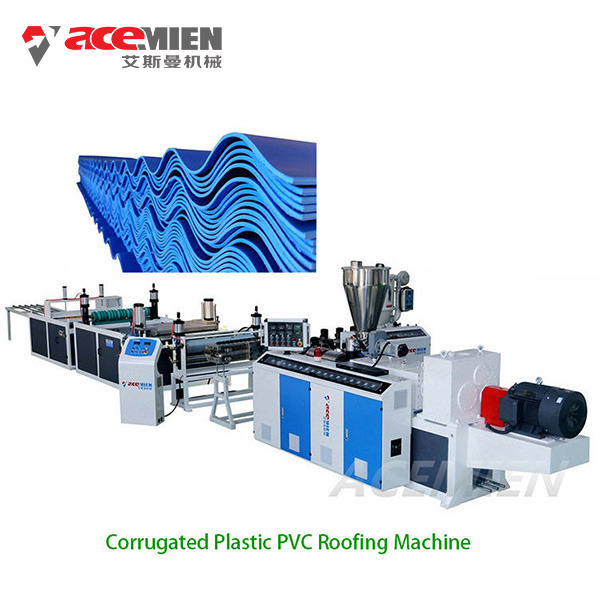

Machine name: Plastic PVC Composite Roof Tile Making machine
Finished product : Plastic roofing , PVC composite roofing , Plastic corrugated roofing


Product features:
Using life more than 20years
Good sound and heat insulation
Fire resistance, anti-corrosion
Using recycled PVC ,environment-friendly
Excellent anti-load performance
Easy to install, packing and transport
Plants, steel factories, warehouse, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plant, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.
