Plastic Single Wall Corrugated PIPE PE PP Pipe Extrusion Line

1 Set
MOQ
$15,000.00(1 - 1 Sets) $12,000.00(2 - 2 Sets) $10,000.00(3 - 3 Sets) $8,000.00(>=4 Sets)
Price
Plastic Single Wall Corrugated PIPE PE PP Pipe Extrusion Line
Features Gallery Product Description Request A Quote
Features
Specifications
Application: PIPE
Plastic Processed: PE, PVC
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 45
Screw L/D Ratio: 30:1
Screw Speed (rpm): 40 Rpm
Showroom Location: Italy, France, Germany, Philippines, Indonesia, Mexico, Morocco, Argentina, South Korea, Chile, Colombia, Kazakhstan, Ukraine, Nigeria
Voltage: Customer Requirements
Dimension(L*W*H): Customer Requirements
Power (kW): 85
Weight: Customer Requirements
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use
Marketing Type: New Product 2020
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Screw
Name: Extrusion Machine
Usage: Wide Usage
Processing Type: AUTOMATIC
After-sales Service Provided: Field Installation, Commissioning And Training, Online Support
After Warranty Service: Online Support
Local Service Location: United States, France, Germany, Indonesia, India, Russia, Malaysia, Morocco, Argentina, Chile, Colombia, Bangladesh, Ukraine
Certification: CE; ISO
Basic Infomation
Certification: CE; ISO
Payment & Shipping Terms
Supply Ability: 10 Set/Sets per Month
Product Description
Product Description

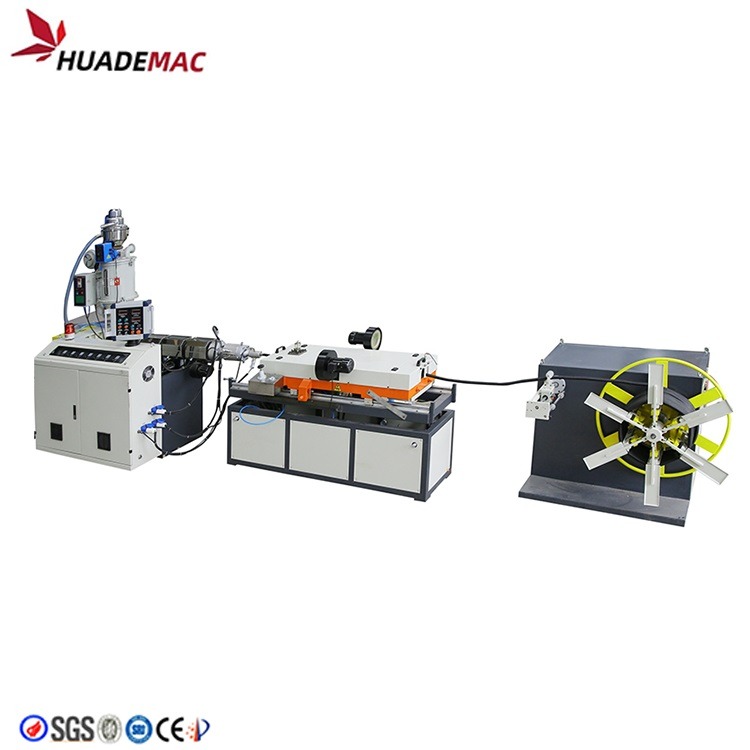

PP SINGLE WALL CORRUGATED PIPE EXTRUSION LINE

SINGLE WALL CORRUGATED PIPE EXTRUSION LINE is mainly composed of the extruder, extruder die-head, corrugated pipe forming machine, forming machine chain mould, and winding machine can be added if customers need. Use: single wall flexible corrugated pipe machine has features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc. Features: They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
Pipe diameter
8-32mm
16-75mm
Main Extruder model
SJ50
SJ65
Main Extruder L/D
25:1/28:1/30:1
25:1/28:1/30:1
Capacity
30-50kg/h
60-80kg/h
Main Motor
11KW/15KW
18.5KW/22KW
Cooling type
Air fans cooling
Air fans cooling
Forming mould quantity
50 paris
60 pairs
Production Speed
8-12m/min
8-15m/min
Forming machine motor
1.5kw
1.5kw
