Water Sewage PVC Pipe Making Machine/Plastic Extrusion Line/Water Supply Drain PVC Insulation Tube Pipe Production Line

1 Set
MOQ
Water Sewage PVC Pipe Making Machine/Plastic Extrusion Line/Water Supply Drain PVC Insulation Tube Pipe Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Pipe Production Line
Pipe Material: PVC
Application: Water Sewage,Supply,Electric Conduit
Production Capacity: 1-10m/min
Voltage: 220/380/415/420/440V/480V
Power: 30-255KW
Dimension(L*W*H): Machine Model
Weight: 6.5T
Warranty: 12 Months
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Certification: CE ISO
Pipe Diameter Range: 12-800mm
Output: 120-800kg/h
Air Compressor: 0.6Mpa
Extruder Type: Conical Twin Screw Extruder
Material Of Screw/Barrel: 38CrMoAlA
Processing Type: Extrusion Machine
Main Electric Components: Siemens
Inverter: ABB
Machine Material: Stainless Steel
Keywords: PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Standard Export Seaworthy Packing PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line Please kindly note that the machine packing size(unit is m3) and weight is for small model line, others' pls
Product Description
Product Description

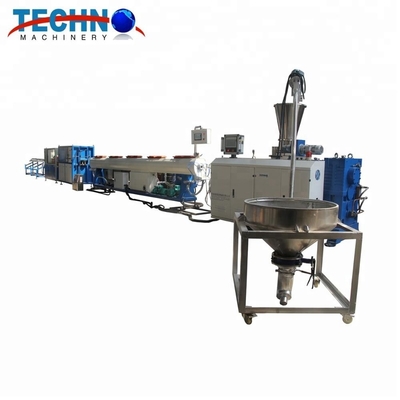

Illustration of PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

Pipes made from PVC are usually manufactured by extrusion.This process starts by feeding plastic material from a hopper into the barrel of the extruder.The material is gradually melted by the mechanical energy generated by turning screws and by heaters arranged along the barrel.The molten polymer is then forced into a die,which shapes the polymer into a pipe that hardens during cooling.

One line equipment includes conical twin screw extruder, vacuum tank, haul-off unit, cutter, tilting frame.The parallel twin screw extruder has newly developed for its technologies in PVC pipe extruded by increasing in the drive torques and innovative solutions to problems in vacuum scavenging system and melt pressure contrion.There are multiple kinds of hauling method, like two caterpillars, three caterpillars, four caterpillars, six caterpillars. About cutting the pipes, use lifted saw or planetary cutter according to the pipe diameter.

We manufacture competitive and reliable plastic extrusion machinery for pipes using PVC. The machine is well manufactured with superior technique to provide you the best of output with very maximum utilization of resources.
Main Technical Parameter
Model
PVCG-63
PVCG-110
PVCG-160
PVCG-250
PVCG-315
PVCG-400
PVCG-630
Matched Extruder
SJZ51/105
SJZ65/132
SJZ65/132
SJZ65/132
SJZ80/156
SJZ80/156
SJG92/188
OD Range(mm)
16-63
50-110
50-160
75-250
110-315
200-400
315-630
Length of Vacuum Calibrator(mm)
4000
5000
6000
6000
6000
6000
6000
Haul Speed(m/min)
0.6-8
0.6-6
0.5-5
0.4-4
0.3-3
0.2-2.5
0.2-1.5
Install Power(kw)
55
75
85
95
125
135
255
Total Length(mm)
15000
17000
18000
20000
20500
28000
30000
Certifications
Detailed Images

Twin Screw Extruder of PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

Vacuum Calibrating Bath of PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

Haul-off Unit of PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

Cutter of PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

Tilting Stacker of PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

(Option,not included in the Price) PVC Mixer for PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

(Option,not included in the Price) Plastic Crusher for PVC Pipe Making Machine/Plastic Water Supply Drain Pipe Extrusion Line/PVC Electric Conduit Pipe Production Line

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
24(L) * 1.8 (W) * 2.2 (D)
Weight
5 T



Packaging Details
If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
