Features

Specifications

Application: PIPE

Plastic Processed: PVC

Condition: New

Screw Design: Single-screw

Screw Material: 38CrMoALA

Screw Diameter (mm): 65

Screw L/D Ratio: 28:1

Screw Speed (rpm): 90 Rpm

Showroom Location: None

Voltage: 380V.50Hz 3phase Or As Customer Request

Dimension(L*W*H): 20*5*3

Power (kW): 50

Weight: 6.5 KG

Warranty: 1 Year

Key Selling Points: Automatic

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera

Marketing Type: New Product 2021

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty Of Core Components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw

Name: PVC Lay-Flat Hose Machine Plastic Machine

Motor: SIEMENS Brand

Usage: Wide

Capacity: 20- 80kg/h

Extruder: 65 Single Screw Extruder

Product: Pvc Layfalt Hose

Keywords: Layflat Hose

After-sales Service Provided: Field Maintenance And Repair Service

After Warranty Service: Spare Parts

Basic Infomation

Payment & Shipping Terms

Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.

Product Description

Product Overview

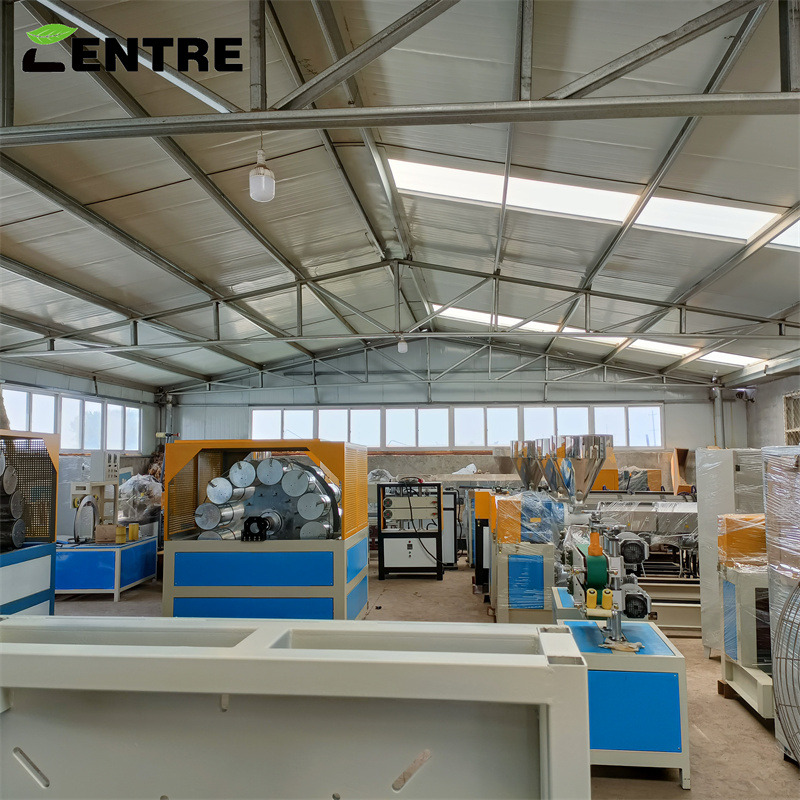

SY-CT Lay Flat Hose Mkachine Flexible PVC Braided Pipe Production Line for Agriculture

· Hi-strength terylene yarn and qualified PVC synthesis materials.

· Light weight, good flexibility, bright color, smooth smearing layer.

· Flat roll and easy for take back, convenient for moving and non limitation for length.

· Capable for keeping the flexibility and elasticity under the low-temperature water.

FEATURES AT A GLANCE

· Anti-hi pressure, corrosion resistance and ageing resistance. · Applied to the lines of the auxiliaries for agricultural tools against the drought, project, miming, environment protection, industry and so on, which is the most ideal liquid-transferred hi-pressure hose.

Right elevation

Left elevation

Front elevation

The series DTG flexible tubes with a plastic coat we produced have 50 specifications and models.We divide the products into 3 models according to the working pressure , they are 0.2,0.3,0.4,each model can be further devided into 10 specifications according to the inner diameters , they are 25,30,40,50,65,76,100,125,and 200 mm. Other specifications of products also can be produced according to the special demands of users.

PRODUCT SPECIFICATIONS

Item	Description
Product Name	PVC Layflat Hose
Specification	3/4"-8"
Length/roll	20M 50M 100M
Working Pressure	4BAR-10BAR
Brusting Pressure	6BAR-30BAR
Weight/roll	14-291KG/ROLL
Volume	0.02-0.361m³
color	Blue red yellow and etc
Packing	plastic film,non woven fabric,carton,wooden case
Production Capacity	500tons per month

SALES AND SERVICE NETWORK

AUXILIARY MACHINE:

Company Profile

Qingdao Sanny Future International Trading Co., Ltd is located in Room 2305,Powerlong City square, Jiaozhou, Qingdao city Shandong province,and factory is located in Beiguan industrial park, Jiaozhou, Qingdao city Shandong province .Company has ten years of experience in the industry of plastic extruding, the main products include: all kinds of plastic different profile production line, all kinds of auxiliary plastic plate, sheet production line, plastic recycling (crushing, washing, granulation) line, centralized feeding system, such as plastic extrusion processing machinery and equipment production line. The company has introduced from Europe a number of multi-station processing centers and CNC lathes, CNC milling machines and a large number of advanced high-precision processing equipment. Adhere to the comprehensive implementation of "zero defect" quality management, strengthen the procurement and supply, production technology, quality inspection, product sales, financial arrangements, after-sales service and other aspects of efficient quality control. Combined plastic machinery's deep understanding of plastic extrusion technology and excellent metal processing capabilities make its quality unique. Long-term accumulated production debugging experience, grasp of new extrusion technology, and every link in production management comprehensively implement the ISO 9001:2008 and CE certification of quality management system, with the expansion of the scope of business, for the product quality and after-sales service for a full range of monitoring and management, satisfy the customer the most stringent requirements, make us become your trustworthy partner.

FAQ

1. Pre-sale service: To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on. Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits. 2. After-service 1 Free installation and debugging 2 Provide all kinds of product formula, technology and chemical material manufacturer information 3 According to the customer's requirements, provide technical guidance 4 Technical training for employees of customers 5 Responsible for maintenance service, door to door service if necessary.
